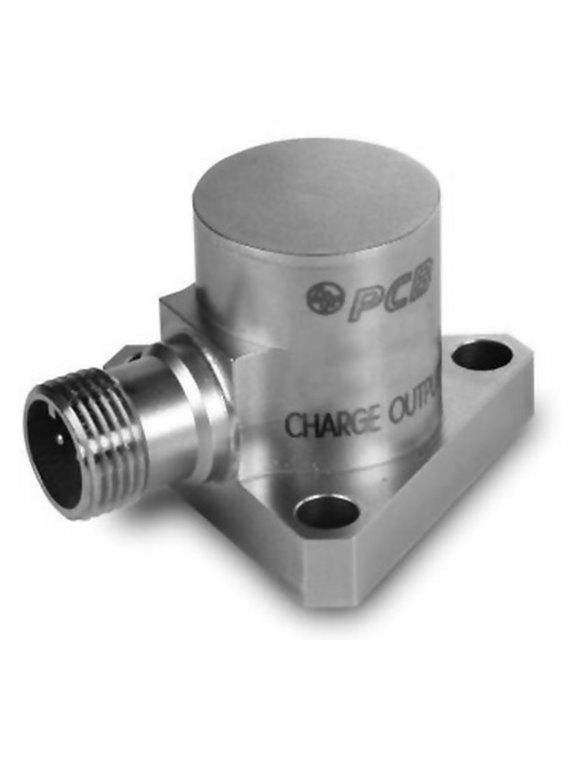

PCB-357B82
zoom_out_map

PCB-357B82

  • Vibration sensor with charge output,
  • Continuous use temperature up to 260 ° C,
  • Decay,
  • Measuring range 1000 g,
  • Sensitivity 50 pC/g,
  • Upper frequency limit 6,000 Hz,
  • 2-pin female connector on the side
  • basic data
    sensitivity (±5%) 50 pC/g 5.1 pC/(m/s²)
    range 1000 g pk 9,810 m/s² pk
    frequency range (±5%) 6,000 Hz
    Resonance frequency ≥ 20,000 Hz
    linearity error (1.000 g, 9,800 m/s²) ≤ 1%
    acceleration interference ≤ 5% [2]
    conditions
    Overload limit (shock) ±2. 000 g pk ±19. 620 m/s² PK
    Temperature range (operation) -65 … 500 ° F -54 … 260 ° C
    temperature range (max) 550 ° F 288 ° C
    Strain sensitivity (footprint) 0.001 g/µε 0.01 (m/s²)/µε [1]
    maximum radiation exposure (integratedNeutron flux) 10.000.000.000 N / cm 2
    maximum radiation exposure (integral gamma River) 100,000,000 wheel
    technical characteristics
    capacity (from pin to pin) 2,300 pF [1]
    capacity (of pin housing) 30 pF [1]
    capacity ät (asymmetry between the pins) ≤ 2 pF
    insulation resistance (from pin to pin at 21 ° C) ≥ 1 G Ω
    Insulation resistance (from pin on housing at 21 ° C) ≥ 1 G Ω
    insulation resistance (from pin to pin at 260 ° C) ≥ 10 M Ω
    Insulation resistance (from pin on housing at 260 ° C) ≥ 50 M Ω
    output polarity differential
    -physical Properties
    sensor element ceramic
    geometry of the sensor element shear principle
    housing material Stainless steel
    Sealing hermetically sealed
    size - height 1.00 in 25.4 mm
    size ße - diameter 0.75 in 19 mm
    dimensions (maximum) 1.75 oz 50 grams [1]
    electrical connection 7/16-27 2-pin
    Connection position side
    mounting 3 holes
    notes
    [1] Typically
    [2] transverse acceleration sensitivity typically ≤ 3%
    equipment
    081A99 screw 3
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    PCB-357B82

    Specific References

    Download

    357B82_drawing.PDF

    Technical drawing

    Download (198.07k)

    357B82_manual.PDF

    Operating instructions

    Download (782.58k)

    357B82_specs.PDF

    Technical data sheet

    Download (162.87k)
