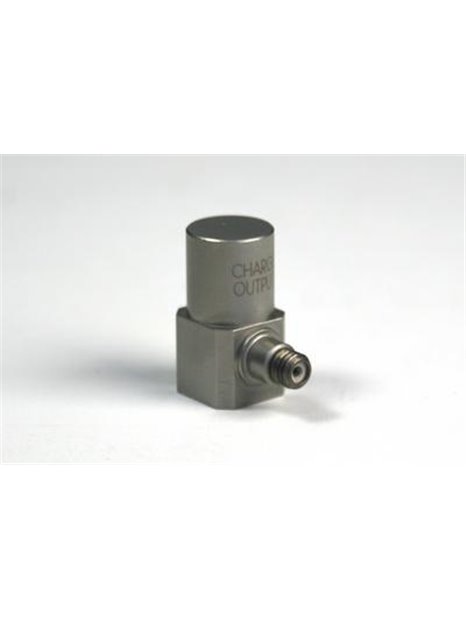

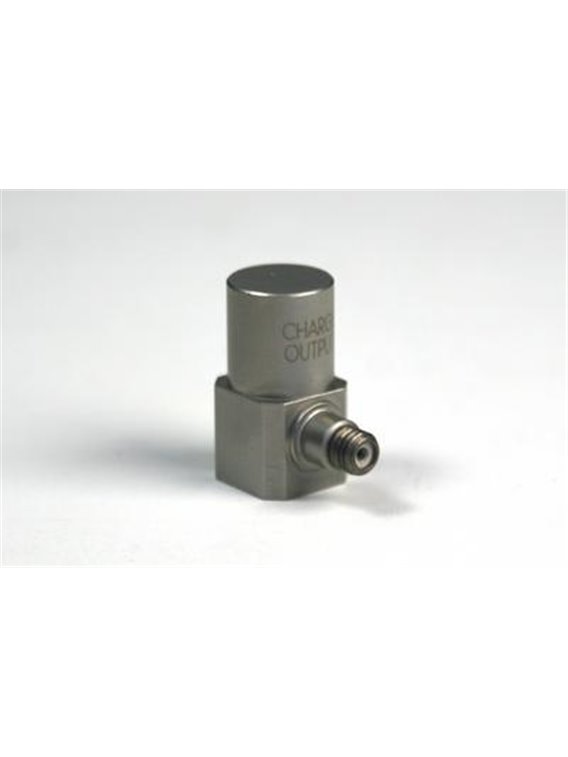

PCB-357B69/NC

  • Vibration sensor with charge output,
  • Continuous use temperature up to 482 ° C,
  • Decay,
  • Measuring range 500 g
  • Sensitivity 3.5 pC/g,
  • Upper frequency limit 6,000 Hz,
  • 10-32 socket side,
  • Without hardline cable
  • basic data
    sensitivity (±10%) 3.5 pC/g 0,357 pC/(m/s²)
    range ±500 g PK ±4. 905 m/s 2 pk
    frequency range (±5%) 6,000 Hz
    Resonance frequency ≥ 35,000 Hz
    Linearity ≤ 1%
    transverse acceleration sensitivity ≤ 5%
    Conditions of use
    Overload limit (shock) ±3. 000 g pk ±29. 420 m/s² pk
    Temperature range -65 … 900 ° F -54 … 482 ° C
    strain sensitivity (footprint) 0.0008 g/µε 0.008 (m/s²)/µε [1]
    maximum radiation exposure (integrated neutron flux) 10.000.000.000 N / cm 2
    maximum Radiation effect(integrated gamma River) 100,000,000 wheel
    Technical
    capacity 196 pF [1]
    insulation resistance (at 21 ° C) > 1 G Ω
    Insulation resistance (at 482 ° C) > 100 k Ω
    output polarity negative
    -physical Properties
    geometry of the sensor element compression principle
    housing material Inconel
    Sealing hermetically sealed
    size - height 0.875 in 22.2 mm
    size - diameter 0.45 in 11.4 mm
    Mass 0.56 oz 16 grams [1]
    electrical connection 10-32-coaxial socket
    Connecting position side
    mounting thread 10-32 female thread
    Assembly torque 18 lb 2 Nm
    Instructions
    [1] typically
    equipment
    081A107 mounting bolts (10-32 on 10-32) -1
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    M081A107 metric mounting bolts (10-32 to M6 x 0.75) -1
    (P) positive output voltage
    PCB-357B69/NC

    Specific References

    Download

    357B69_drawing.PDF

    Technical drawing

    Download (66.38k)

    357B69_specs.PDF

    Technical data sheet

    Download (24.61k)

    357B69_NC_manual.PDF

    Operating instructions

    Download (518.95k)
