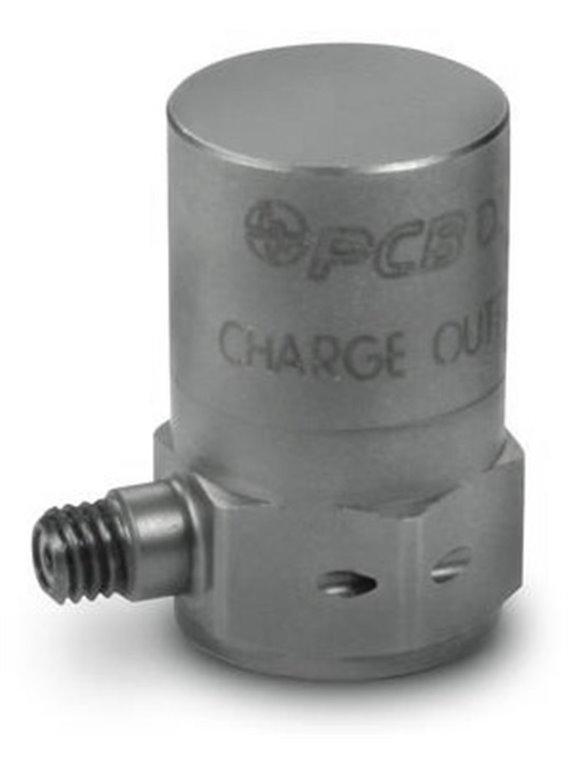

PCB-357B61/NC
zoom_out_map

PCB-357B61/NC

  • Vibration sensor with charge output,
  • Continuous use temperature up to 482 ° C,
  • Decay,
  • Measuring range 1000 g,
  • Sensitivity 10 pC/g,
  • Upper limit frequency 5,000 Hz,
  • 10-32 socket side,
  • Without hardline cable
  • basic data
    sensitivity (±10%) 10 pC/g 1.02 pC/(m/s²)
    range ± 1.000 g PK ±9. 810 m/s² pk
    frequency range (±5%) 5,000 Hz [2]
    Resonance frequency ≥ 24,000 Hz
    Linearity ≤ 1% [3]
    transverse acceleration sensitivity ≤ 3%
    Conditions of use
    Overload limit (shock) ±5. 000 g pk ±49. 050 m/s² pk
    Temperature range -65 … 900 ° F -54 … 482 ° C
    strain sensitivity (footprint) 0.001 g/µε 0.01 (m/s²)/µε [1]
    maximum radiation exposure (integrated neutron flux) 10.000.000.000 N / cm 2
    maximum Radiation effect(integrated gamma River) 100,000,000 wheel
    Technical
    capacity 630 pF [1]
    insulation resistance (at 21 ° C) ≥ 100 MΩ
    Insulation resistance (at 482 ° C) > 100 k Ω
    output polarity negative
    -physical Properties
    sensor element ceramic
    geometry of the sensor element compression principle
    parts usematerial Inconel
    sealing hermetically sealed
    size - hex 5/8 in 15.9 mm
    Size - height 1.0 in 25.4 mm
    weight 1.1 oz 30 grams [1]
    electrical connection 10-32-coaxial socket
    Connection position side
    mounting thread 10-32 female thread
    Notes
    [1] typically
    [2] the lower cut-off frequency depends on the used signal conditioning electronics.
    [3] zero-based balancing line, determined using the method of least squares
    equipment
    081A107 Mounting bolts (10-32 on 10-32) -1
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    M081A107 metric mounting bolts (10-32 to M6 x 0.75) -1
    (P) positive output voltage
