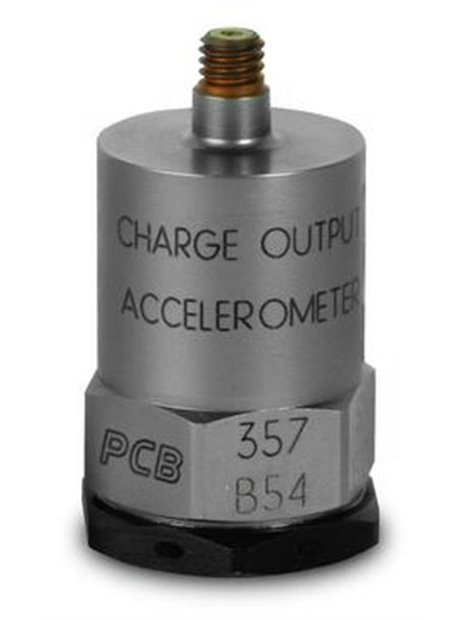

PCB-357B54
| basic data | |||
| sensitivity (±15%) | 100 pC/g | 10.2 pC/(m/s²) | |
| range | 150 g pk | ±1. 470 m/s² pk | |
| frequency range (+ 5%) | 3,000 Hz | [3] | |
| Frequency range (+ 10%) | 3,500 Hz | [3] | |
| frequency range (+ 3 dB) | 5,500 Hz | [3] | |
| resonance frequency | ≥12,000 Hz | ||
| Linearity | ≤1% | [1] | |
| transverse acceleration sensitivity | ≤5% | ||
| conditions of use | |||
| Overload limit (shock) | ±2. 000 g pk | ±19. 600 m/s² pk | |
| Temperature | -95 … 550 ° F | -71 … 288 ° C | |
| strain sensitivity (footprint) | 0.0002 g/µε | 0.002 (m/s²) /. µ ? | [2] |
| 10-32-coaxial socket | |||
| connection position | above | ||
| mounting thread | 10-32 female thread | ||
| Instructions | |||
| [1] | zero-based balancing line, determined using the method of least squares | ||
| [2] | typically | ||
| [3] | the lower cut-off frequency depends on the used signal conditioning electronics. | ||
| Accessories | |||
| 081 B 05 | mounting bolts (10-32 on 10-32) | -1 | |
| ACS-1 | Frequency response, traceable to NIST (10 Hz up to the upper 5% point) | -1 | |
| M081B05 | mounting bolts 10-32 to M6 x 0.75 | -1 |
