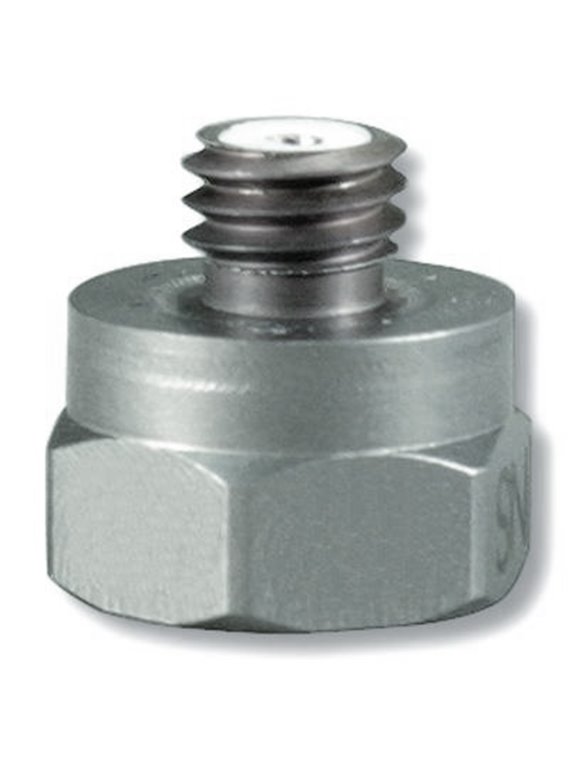

PCB-357B45

  • Vibration sensor with charge output,
  • Continuous use temperature to 177 ° C,
  • Measuring range 500 g
  • Sensitivity 2.6 pC/g,
  • Upper frequency limit 8,000 Hz,
  • Weight 2.8 grams,
  • 10-32 female connector above
  • ,
    basic data
    sensitivity (±20%) 2.6 pC/g 0.26 pC/(m/s²)
    range ±500 g pk ±4. 905 m/s 2 pk
    frequency range (+ 5%)8,000 Hz [3]
    Frequency range (+ 10%) 10,000 Hz [3]
    resonance frequency ≥ 30,000 Hz
    linearity ≤ 1% [1]
    Transverse acceleration sensitivity ≤ 5% [4]
    conditions
    Overload limit (shock) ±5. 000 g PK ±49. 050 m/s² pk
    Temperature range -100 … 350 ° F -73 … 177 ° C
    technical
    capacity 240 pF [2]
    Insulation resistance > 10,000 M Ω [2]
    output polarity negative
    -physicalProperties
    sensor element ceramic
    geometry of the sensor element shear principle
    housing material Titanium
    sealing hermetically sealed welded
    size - hex 0.38 in 9.7 mm
    Size - height 0.38 in 9.7 mm
    dimensions 0.10 oz 2.8 grams [2]
    electric Connection 10-32-coaxial socket
    connection position above
    attachment bonding
    Notes
    [1] zero-based balancing line, determined using the method of least squares
    [2] typically
    [3] the lower cut-off frequency depends on the used signal conditioning electronics.
    [4] transverse acceleration sensitivity typically ≤ 3%
    includedAccessories
    080A109 mounting wax -1
    ACS-1 frequency response, rückf ührbar on NIST (10 Hz up to the upper 5% point) -1
    ACS-30 extended frequency response, top 5% frequency up to 10,000 Hz (additional calibration for ACS-1) -1
