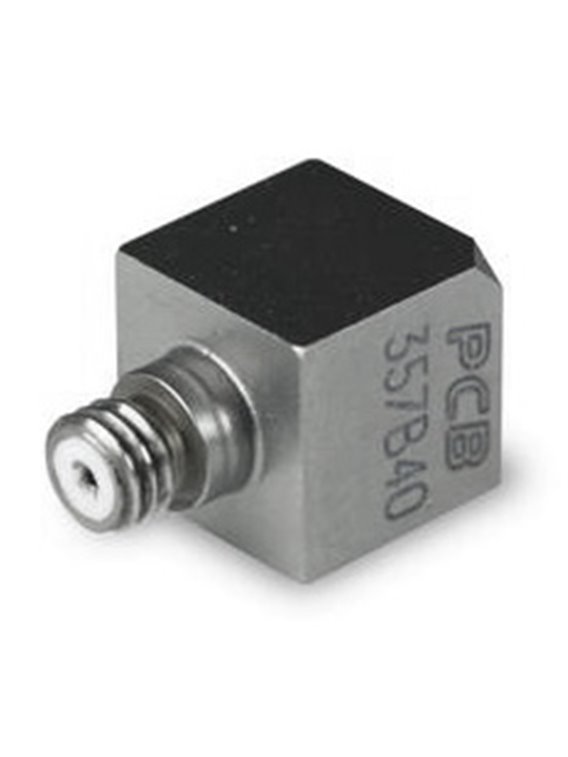

      PCB-357B40

    • Vibration sensor with charge output,
    • Continuous use temperature up to 257 ° C,
    • Measuring range 100 g,
    • Sensitivity 5 pC/g,
    • Upper frequency limit 10,000 Hz,
    • 10-32 female connector on the side
    •

      basic data
      sensitivity (±20%)5.0 pC/g0.51 pC/(m/s²)

      range± 1.000 g PK±9. 810 m/s² pk

      frequency range (+ 5%)10,000 Hz [3]

      Frequency range (+ 10%)13,000 Hz [3]

      resonance frequency≥40,000 Hz

      linearity≤1% [2]

      Transverse acceleration sensitivity≤5%
      conditions of use
      Overload limit (shock)±5. 000 g PK±49. 000 m/s² pk

      Temperature range-65 … 495 ° F-54 … 257 ° C

      strain sensitivity (footprint)0.01 g/µε0.1 (m/s²)/µε[1]
      Technical properties
      capacity680 pF
      notes
      [1]typically

      [2]zero-based balancing line, determined using the method of least squares

      [3]the lower cut-off frequency depends on the used signal conditioning electronics.
      Equipment
      081A27mounting bolts, 5-40 on 5-40-1

      ACS-1Frequency response, traceable to NIST (10 Hz up to the upper 5% point)-1
      (P) positive output voltage

      PCB-357B40

      Specific References
