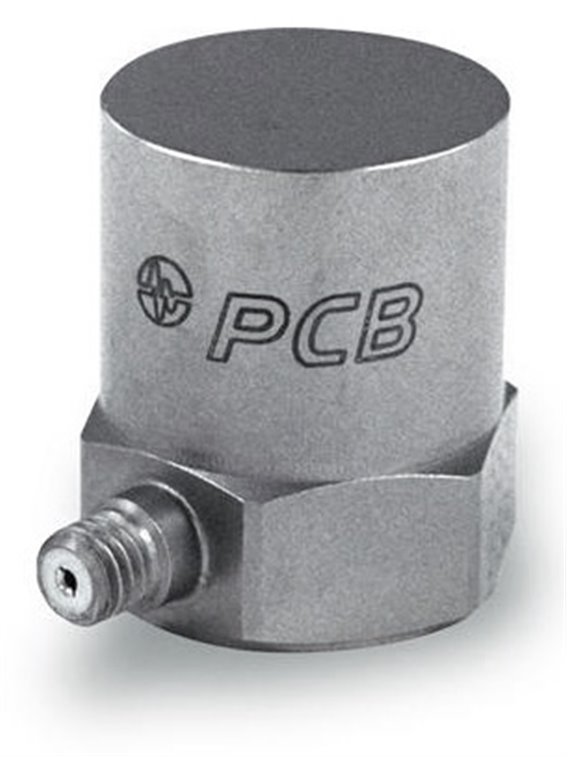

    • Vibration sensor with charge output,
    • Continuous use temperature up to 260 ° C,
    • Measuring range 150 g,
    • Sensitivity 100 pC/g,
    • Upper frequency limit 3,000 Hz,
    • 10-32 female connector on the side
    •

      basic data
      sensitivity (±15%)100 pC/g10.2 pC/(m/s²)

      range150 g pk ±1. 470 m/s² pk

      frequency range (+ 5%)3,000 Hz [3]

      Frequency range (+ 10%)3,500 Hz [3]

      frequency range (+ 3 dB)5,500 Hz [3]

      resonance frequency≥ 13,000 Hz

      Linearity≤1% [1]

      transverse acceleration sensitivity≤5%
      conditions of use
      Overload limit (shock)±2. 000 g pk±19. 600 m/s² pk

      Temperature-95 … 500 ° F-71 … 260 ° C

      strain sensitivity (footprint)0.0002 g/µε0.002 (m/s²) /µ?[2]
      Technical characteristics
      capacity930 pF [2]

      Insulation resistance (at 21 ° C)≥1,000,000 MΩ

      insulation resistance (at 260 ° C)≥100 MΩ [2]

      Output polaritynegative
      physical properties
      sensor elementceramic

      geometry of the Sensor elementshear principle

      housing materialtitanium

      sealinghermetic

      Size - hex¾ in19 mm

      size - height1.00 in25.4 mm

      mass1.60 oz45 grams[2]

      Electrical connection10-32-coaxial socket

      connection positionside

      mounting thread10-32 female thread
      notes
      [1]zero-based balancing line,.determined with the method of least squares

      [2]typically

      [3]the lower cut-off frequency is determined by the used Signal conditioning electronics from.
      Equipment
      080A109mounting wax-1

      081 B 05Mounting bolts (10-32 on 10-32)-1

      ACS-1frequency response, traceable to NIST (10 Hz up to the upper 5% point)-1

      M081B05Mounting bolts 10-32 to M6 x 0.75-1
      (J) mass insulation of
      frequency range (5%)3,000 Hz

      frequency range (10%)3,500 Hz

      Resonance frequency≥12,000 Hz

      Electrical insulation (base)>100 MΩ

      size - hex0.75 in19.1 mm

      e height1.05 in26.7 mm
      (P) positive output voltage

      (W) waterproof cable connection
      electrical Portsealed integrated cable

      connection positionside
