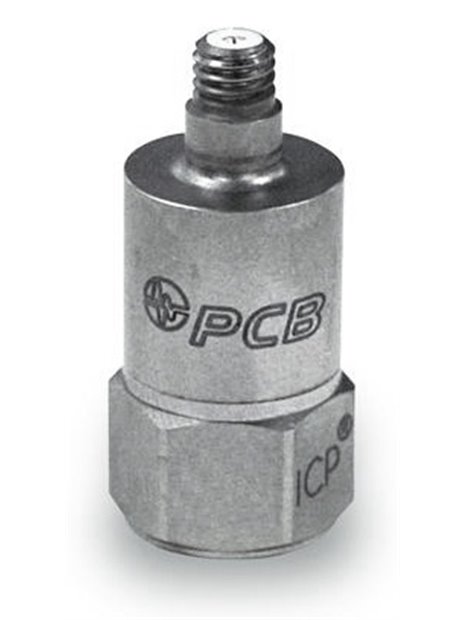

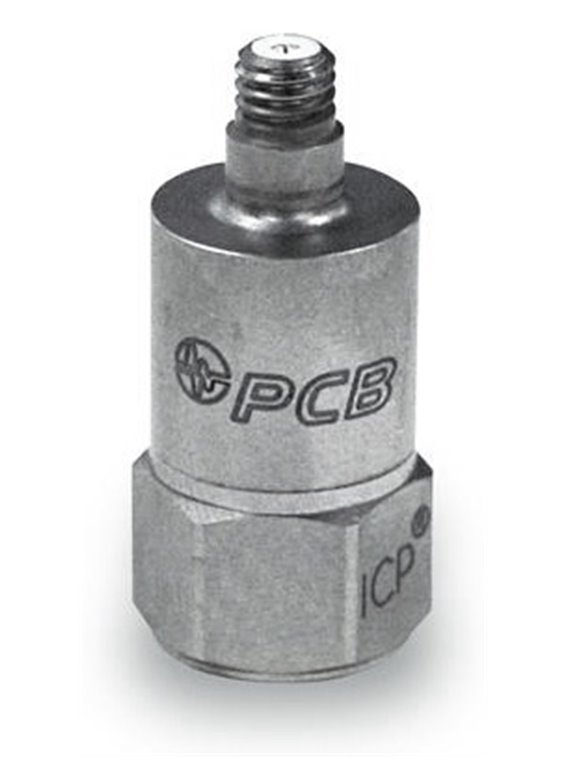

PCB-357B02

  • Vibration sensor with charge output,
  • Continuous use temperature up to 260 ° C,
  • Measuring range 1,800 g,
  • Sensitivity 15 pC/g,
  • Upper frequency limit 9,000 Hz,
  • 10-32 female connector above
  •

    basic data
    sensitivity (±15%) 15 pC/g 1.53 pC/(m/s²)

    range ± 1.800 g PK ±17. 600 m/s² pk

    frequency range (+ 5%) 9,000 Hz   [3]

    Frequency range (+ 10%) 10,000 Hz   [3]

    frequency range (+ 3 dB) 16,000 Hz   [3]

    resonance frequency ≥36,000 Hz

    Linearity ≤1%   [1]

    transverse acceleration sensitivity ≤5%
    Conditions of use
    Overload limit (shock) ± 15.000 g pk ±147. 000 m/s² pk

    Temperature -95 … 500 ° F -71 … 260 ° C

    strain sensitivity (footprint) 0.0006 g/µε 0.006 (m/s²)/µε [2]
    Technical properties
    capacity 930 pF   [2]

    Insulation resistance (at 21 ° C) ≥1,000,000 MΩ

    insulation resistance (at 260 ° C) ≥100 MΩ   [2]

    Output polarity negative
    physical properties
    sensor element ceramic

    geometry of the Sensor element shear principle

    housing material titanium

    sealing hermetic

    Size - hex ½ in 12.7 mm

    size - height 1.19 in 30.2 mm

    mass 0.43 oz 12 grams [2]

    electrical connection 10-32-coaxial socket

    connection position above

    Mounting thread 10-32 female thread
    notes
    [1] zero-based balancing line,.determined with the method of least squares

    [2] typically

    [3] the lower cut-off frequency is determined by the used Signal conditioning electronics from.
    Equipment
    080A109 mounting wax -1

    081 B 05 Mounting bolts (10-32 on 10-32) -1

    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1

    M081B05 Mounting bolts 10-32 to M6 x 0.75 -1
    (J) mass insulation of
    frequency range (5%) 7,000 Hz

    frequency range (10%) 8,000 Hz

    Resonance frequency ≥30,000 Hz

    Electrical insulation (base) >100 MΩ

    size - hex 0.5 in 12.7 mm

    -Height 1.24 in 31.6 mm
    (P) positive output voltage

    (W) waterproof cable connection
    electrical Port sealed integrated cable

    connection position above
