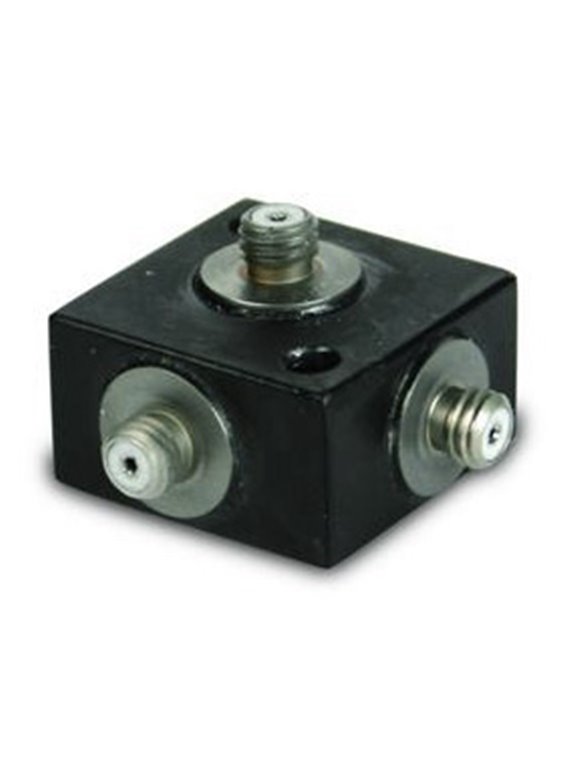

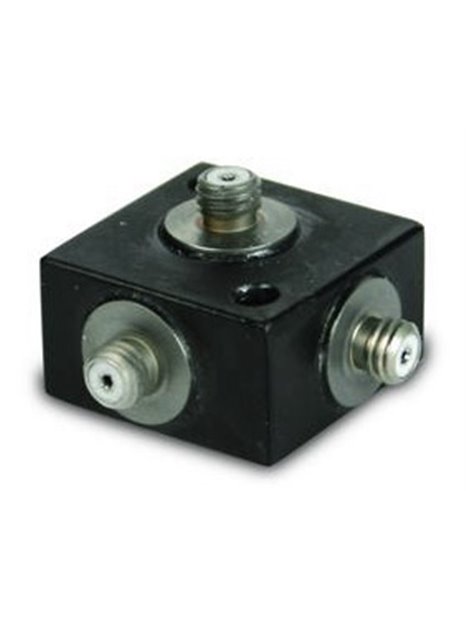

PCB-354B21
zoom_out_map

PCB-354B21

  • Triaxial ICP® vibration sensor,
  • With through-holes
  • Masseisoliert,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Three 10-32-connectors
  • basic data
    sensitivity (±10%) 10 mV / g 1.02 mV/(m/s²)
    range ±500 g pk ±4. 905 m/s 2 pk
    frequency range (±5%) 1.0 … 7,000 Hz
    Frequency range (± 1 dB) 0,5 … 8,000 Hz
    resonance frequency ≥ 20,000 Hz
    wide band resolution 0.001 g RMS 0.01 m/s² RMS [1]
    linearity ≤ 1% [2]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit (shock) ±5. 000 g PK ±49. 050 m/s² pk
    Temperature range -65 … 250 ° F -54 … 121 ° C
    Strain sensitivity (footprint) 0.0005 g/µε 0.005 (m/s²)/µε [1]
    specifications
    power supply 21 … 30 V DC
    constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 8 … 14,5 V DC
    discharging charging time constant 0.5 … 2.0 s
    Settling time < br(auf Bias-Spannung ±10 %) <15 s
    spectral noise (1 Hz) 200 µg / √ Hz 1,962 ( µm / s ²) / √ Hz [1]
    spectral noise (10 Hz) 60 µg / √ Hz 589 (µm / s ²) / √ Hz [1]
    spectral noise (100 Hz ) 15 µg / √ Hz 147 (µm / s ²) / √ Hz [1]
    spectral noise (1,000 Hz) 8 µg / √ Hz 79 (µm / s ²) / √ Hz [1]
    080A109 mounting wax -1
    081A98 4-40 screw -2
    ACS-1 T frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency -1
    M081A98 metric mounting screw -2
