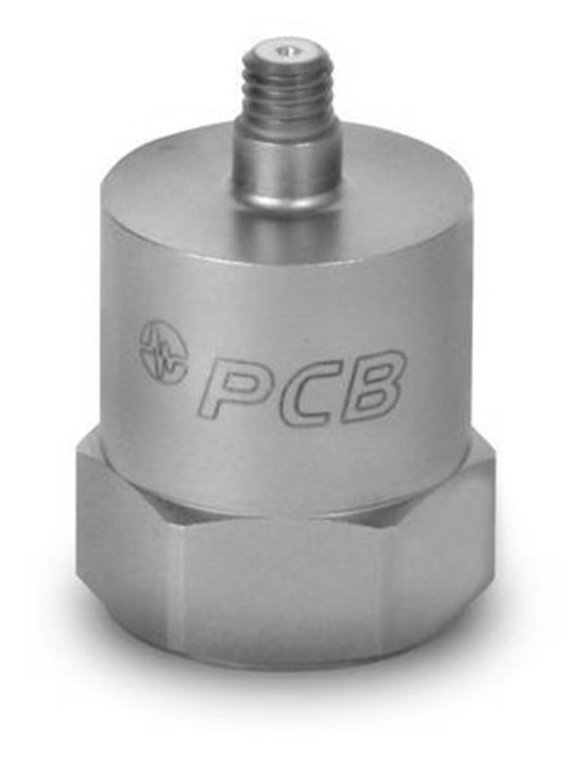

PCB-353B52

  • ICP® vibration sensor,
  • Measuring range 10 g,
  • Sensitivity500 mV / g,
  • Frequency range 1 … 2,000 Hz,
  • 10-32 female connector above
  • , , ,
    basic data
    sensitivity (±5%) 500 mV / g 51.0 mV/(m/s²)
    range ±10 g pk ±98, 1 m/s 2 pk
    frequency range (±5%) 1 … 2,000 Hz
    Frequency range (± 10%) 0.7 … 4,000 Hz
    frequency range (± 3 dB) 0.35 … 7,000 Hz
    Resonance frequency ≥ 14.000 Hz
    wide band resolution 0.0004 g RMS 0.004 m/s² RMS [3]
    Linearity ≤ 1% [1]
    transverse acceleration sensitivity ≤ 5% [2]
    conditions of use
    Overload limit (shock) ±4. 000 g pk ±39. 240 m/s² pk
    Temperature range -65 … 250 ° F -54 … 121 ° C
    strain sensitivity (footprint) 0.0002 g/µε 0.002 (m/s²)/µε [3]
    specifications
    power supply 23 … 30 V DC
    Constant power supply 2 … 20 mA
    output impedance ≤ 100 Ω
    Bias voltage 11 … 16 V DC
    Discharging charging time constant 0.5 … 2.0 s
    settling <15 s
    Spectral noise (1 Hz) 200 µg / √ Hz 1,962 (µm / s ²) / √ Hz
    spectral noise (10 Hz) 16 µg / √ Hz 157 (µm / s ²) / √ Hz [3]
    Spectral noise (100 Hz) 5 µg / √ Hz 49 (µm / s ²) / √ Hz [3]
    spectral noise (1,000 Hz) 1 µg / √ Hz10 (µm / s ²) / √ Hz [3]
    Electrical insulation No (optionally available)
    physical properties
    size - height 1.18 in 29.9 mm
    Size - hex 0.75 in 19.1 mm
    weight 1.1 oz 32 grams [3]
    sensor element Quartz
    geometry of the sensor element shear principle
    housing material titanium
    Sealing hermetically sealed welded
    Electrical connection 10-32-coaxial socket
    connection position above
    mounting thread 10-32 female thread
    notes
    [1] zero-based balancing line, determined using the method of least squares
    [2] Transverse acceleration sensitivity typically ≤ 3%
    [3]typically
    [4] details: see PCBs Declaration of conformance PS023
    equipment
    080A109 Mounting wax -1
    080A12 adhesive mounting -1
    081 B 05 Mounting bolts (10-32 on 10-32) -1
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    M081B05 Mounting bolts 10-32 to M6 x 0.75 -1
    (Q) increased discharge charge time constant
    temperature range 65 … 180 ° F -54 … 82 ° C
    sensitivity (±10%) 500 mV / g 51.0 mV/(m/s²)
    frequency range (5%) 0.1 Hz 0,1 s
    frequency range (10%) 0.07 Hz 0.07 s
    Discharging charging time constant ≥ 10s
    Settling <5 s
    equipment
    ACS-4 low frequency calibration (phase and amplitude) of 0.5 … 10 Hz -1
    (J) mass insulation of
    frequency range (5%)2,000 Hz
    frequency range (10%)4,000 Hz
    Resonance frequency 12,000 Hz
    electrical insulation ≥ 100 MΩ
    size -. Allen 0.75 in 19.1 mm
    size - height 1.23 in 31.2 mm
    (W) waterproof cable connection
    Connector position Top
