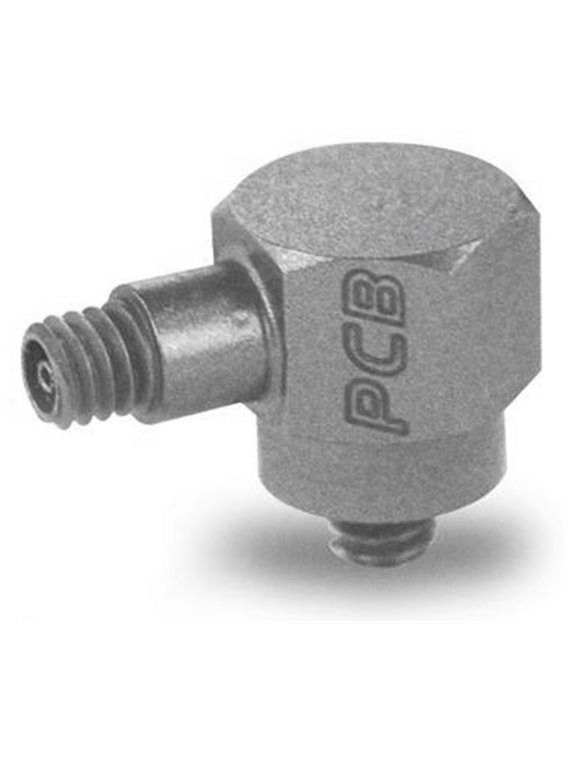

PCB-(M)353B11
| basic data | |||
| sensitivity (±10%) | 5 mV / g | 0.51 mV/(m/s²) | |
| range | ± 1.000 g pk | ±9. 810 m/s² pk | |
| frequency range (±5%) | 1 … 10,000 Hz | ||
| Frequency range (± 10%) | 0.7 … 18,000 Hz | ||
| frequency range (± 3 dB) | 0.35 … 30,000 Hz | ||
| Resonance frequency | ≥ 70,000 Hz | ||
| wide band resolution | 0.01 g RMS | 0.1 m/s² RMS | [1] |
| Linearity | ≤ 1% | [2] | |
| transverse acceleration sensitivity | ≤ 5% | [3] | |
| conditions of use | |||
| (Shock) overload limit | ± 10.000 g pk | ±98.100 m/s² pk | |
| Temperature range (operation) | -65 … 250 ° F | -54 … 121 ° C | |
| Strain sensitivity (base area) | ≤ 0.005 g/µε | ≤ 0.05 (m/s²)/µε | [1] |
| technical characteristics | |||
| Supply voltage | 18 … 30 V DC | ||
| constant power supply | 2 … 20 mA | ||
| Output impedance | ≤ 100 Ω | ||
| Bias voltage | 8 … 12 V DC | ||
| discharging charging time constant | 0.5 … 2.0 s | ||
| Settling time < br(auf Bias-Spannung ±10 %) | <5 s | ||
| spectral noise (1 Hz) | 6,400 µg / √ Hz | 62.784 (µm / s ²) / √ Hz | [1] |
| spectral noise (10 Hz) | 1,400 µg / √ Hz | 13.734 (µm / s ²) / √ Hz | [1] |
| spectral noise (100 Hz) | 360 µg / √ Hz | 3.532 (µm / s ²) / √ Hz | [1] |
| Spectral noise (1,000 Hz) | 128 µg / √ Hz | 1.256 (µm / s ²) / √ Hz | [1] |
| Physical properties | |||
| Size - height | 0.43 in | 10.9 mm | |
| Size - hex | 0.31 in | 7.9 mm | |
| mass | 0.07 oz | 2.0 grams | [1] |
| sensor element | quartz | ||
| Geometry of the sensor element | shear principle | ||
| housing material | titanium | ||
| Sealing | Hermetic | ||
| Electrical connection | 5-44 coaxial | ||
| connection position | side | ||
| Mounting thread | 5-40 male | ||
| Assembly torque | 8 … 12 in-lb | 90 … 135 NCM | |
| notes | |||
| [1] | Typically | ||
| [2] | zero-based balancing line, determined using the method of least squares | ||
| [3] | Transverse acceleration sensitivitytypically ≤ 3% | ||
| [4] | details: see PCBs Declaration of conformance PS023 | ||
| equipment | |||
| 080A109 | Mount wax | -1 | |
| 080A15 | adhesive mounting | -1 | |
| ACS-1 | frequency response, r ückführbar on NIST (10 Hz up to the upper 5% point) | -1 | |
| (Q) increased discharge charge time constant | |||
| frequency range (±5%) | 0.15 … 10,000 Hz | ||
| Frequency range (± 10%) | 0.1 … 20,000 Hz | ||
| discharging charging time constant | ><5 s | ||
| settling time | < 45s | ||
| Equipment | |||
| ACS-4 | low frequency calibration (phase and amplitude) of 0.5 … 10 Hz | -1 | |
| (A) glue Assembly | |||
| Accessories | |||
| 080A90 | glue | -1 | |
| (M) metric mounting | |||
| mounting thread | M3 x 0.50 male | ||
| equipment | |||
| M080A15 | adhesive mounting | -1 | |
| (B) reduced bias voltage | |||
| Bias voltage | 4.5 … 7.5 V DC | ||
| Power | 12 … 30 V DC | ||
| constant power supply | 1 … 20 mA | ||
| measuring range | 600 g pk | 5.886 m/s² pk | |
| (J) mass insulation | |||
| frequency range (±5%) | 1 … 8,000 Hz | ||
| frequency range (± 10%) | 0.7 … 15,000 Hz | ||
| Resonance frequency | 56,000 Hz | ||
| electrical insulation | ≥100 MΩ | ||
| size - hex | 0.37 in | 9.5 mm | |
| Size - height | 0.57 in | 14.5 mm | |
| mass | 0.11 oz | 3.2 grams | |
| (W) waterproof cable connection | |||
| Connection position | side |
PCB-(M)353B11
