PCB-352C44
zoom_out_map

PCB-352C44

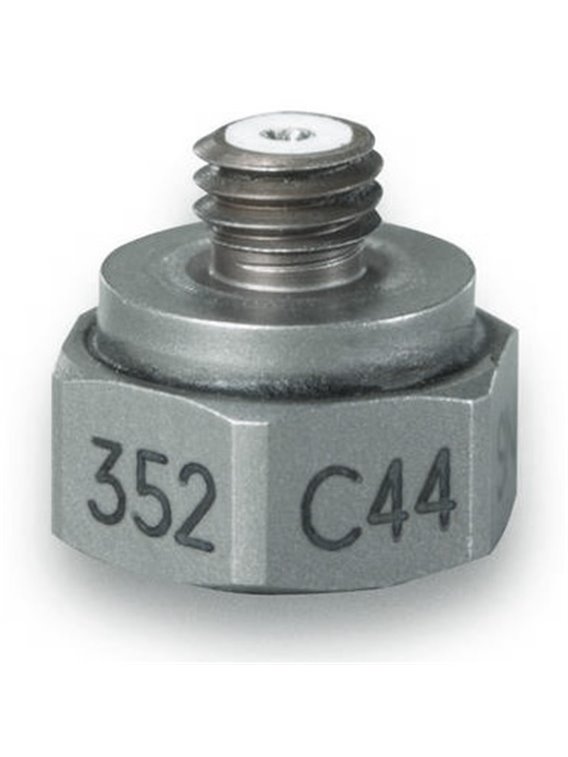

  • ICP®-miniature vibration sensor,
  • Masseisoliert,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 1 … 8,000 Hz,
  • Mass of 3 grams,
  • 10-32 female connector above
  • basic data
    sensitivity (±10%) 100 mV/g 10.2 mV/(m/s²)
    range ±50 g pk ±491 m/s 2 pk
    frequency range (±5%) 1 … 8,000 Hz
    Frequency range (± 10%) 0.5 … 10,000 Hz
    frequency range (± 3 dB) 0.3 … 13,000 Hz
    Resonance frequency ≥ 30,000 Hz
    wide band resolution 0.0005 g RMS 0.005 m/s² RMS [2]
    Linearity ≤ 1% [3]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit ±5. 000 g pk ±49. 050 m/s² pk
    Temperature range -65… 250 ° F -54 … 121 ° C [1]
    specifications
    power supply 22 … 30 V DC
    Constant power supply 2 … 20 mA
    output impedance ≤ 600 Ω
    Bias voltage 8 … 15 V DC
    discharging charging time constant 0.5 … 2.0 s
    Settling time < br(auf Bias-Spannung ±10 %) < 10 s
    spectral noise (1 Hz) 120 µg / √ Hz 1,177 (µm / s ²) / √ Hz [2]
    Spectral noise (10 Hz) 30 µg / √ Hz 294 (µm / s ²) / √ Hz [2]
    spectral noise (100 Hz) 20 µg / √ Hz 196 (µm / s ²) / √ Hz [2]
    spectral noise (1,000 Hz) 6 µg / √ Hz 59 (µm / s ²) / √ Hz [2]
    electrical insulation ≥ 100 MΩΩ
    Physical properties
    size - height 0.42 in 10.7 mm
    size - hex 7/16 in 11.1 mm
    Mass 0.10 oz 3.0 grams [2]
    sensor element ceramic
    geometry of the sensor element shear principle
    Housing material titanium
    sealing hermetically sealed welded
    Electrical connection 10-32-coaxial socket
    Connection position above
    attachment bonding
    notes
    [1] the data for Temperatures above 121 ° C shall apply only for transducers with HT option.
    [2] typically
    [3] zero-based balancing line, determined using the method of least squares
    [4] details: see PCBs Declaration of conformance PS023
    Equipment
    080A109 mounting wax -1
    080A90 Cyano -1
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    (HT) high temperature electronics
    Frequency range (±5%) 10 … 8,000 Hz
    frequency range (± 10%) 8 … 10,000 Hz
    frequency range ( ±3 dB) 4 … 13,000 Hz
    wide band resolution 0.0005 g RMS 0.005 m/s² RMS
    Temperature range -65 … 325 ° F -54 … 163 ° C
    supply 24 … 30 V DC
    Discharging charging time constant 0.04 … 0.12 s
    spectral noise(1 Hz) 200 µg / √ Hz 1,962 (µm / s ²) / √ Hz
    Spectral noise (10 Hz) 70 µg / √ Hz 686,7 (µm / s ²) / √ Hz
    spectral noise (100 Hz) 10 µg / √ Hz 98.1 (µm / s ²) / √ Hz
    Spectral noise (1,000 Hz) 2 µg / √ Hz 19.6 (µm / s ²) / √ Hz
    Bias voltage 7 … 16 V DC
    (W) waterproof cable connection
