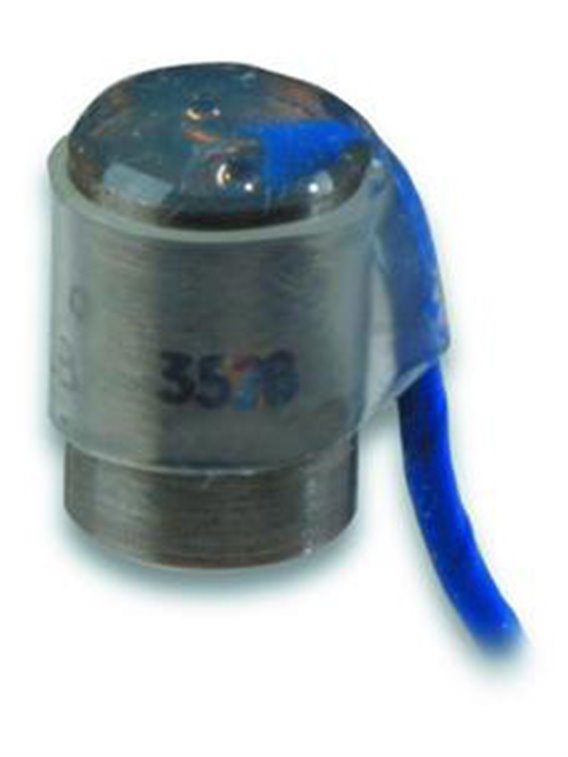

PCB-352B10
zoom_out_map

PCB-352B10

  • ICP®-miniature vibration sensor,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 3 … 10,000 Hz,
  • Mass 0.7 grams,
  • Integrated cable, length 3 m,
    ending on 10-32 plug
  • basic data
    sensitivity (±10%) 10 mV / g 1.02 mV/(m/s²)
    range ±500 g pk ±4. 905 m/s 2 pk
    frequency range (±5%) 2 … 10,000 Hz
    Frequency range (± 10%) 1 … 17,000 Hz
    resonance frequency ≥ 65,000 Hz
    wide band resolution 0.003 g RMS 0.03 m/s² RMS [1]
    Linearity ≤ 1% [2]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    (Shock) overload limit ± 10.000 g pk ±98.100 m/s² pk
    Temperature range (operation) -65 … 250 ° F -54 … 121 ° C [3]
    Technical characteristics
    Supply voltage 18 … 30 V DC
    Constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 7 … 11 V DC
    discharging charging time constant 0.3 … 1,0 s
    settling time
    (on Bias-Spannung ±10%)
    < 3 s
    spectral noise (1 Hz) 1,000 µg / √ Hz 9.810 (µm / s ²) / √ Hz [1]
    Spectral noise (10 Hz) 300 µg / √ Hz 2.943 (µm / s ²) / √ Hz [1]
    spectral noise (100 Hz) 80 µg / √ Hz 785 (µm / s ²) / √ Hz [1]
    spectral noise (1,000 Hz) 25 µg / √ Hz 308 (µm / s ²) / √ Hz [1]
    physical properties
    size -. Diameter 0.24 in 6.1 mm
    Größe - height 0.32 in 8.1 mm
    mass 0.03 oz 0.7 grams [1]
    sensor element ceramic
    Geometry of the sensor element shear principle
    housing material titanium
    sealing Hermetically sealed
    electrical connector pins soldered cable
    cable outlet top
    Cable terminating resistance 10-32-coaxial connector
    cable length 10 ft 3 m
    cable type type 030, coaxial cable
    Attachment bonding
    notes
    [1] typically
    [2] zero-based balancing line, determined using the method of least squares
    [3] the data for temperatures above 121 ° C applies only for transducers with HT option.
    IncludedAccessories
    080A109 mounting wax -1
    080A90 glue -1
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    (HT) high temperature electronics
    Temperature range -65 … 325 ° F -54 … 163 ° C
    (W) waterproof cable
    temperature range 20 … 220 ° F 29 … 104 ° C
    cord type type 018, coaxial cable
    PCB-352B10

    Specific References

    Download

    352B10_drawing.PDF

    Technical drawing

    Download (64.71k)

    352B10_manual.PDF

    Operating instructions

    Download (1.65M)

    352B10_specs.PDF

    Technical data sheet

    Download (32.11k)
