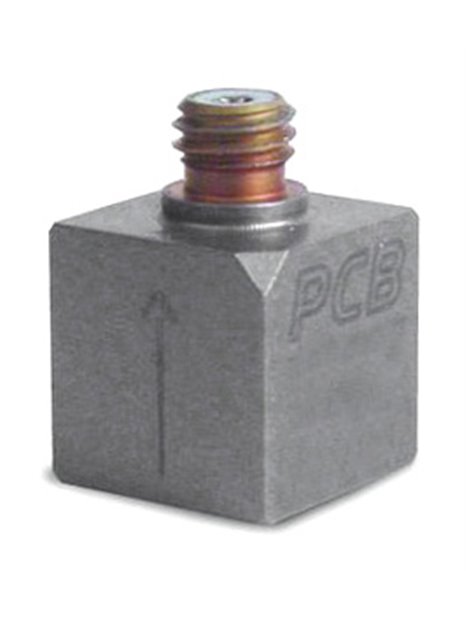

PCB-333B35
zoom_out_map

PCB-333B35

  • ICP®-modal vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.5... 3,000 Hz,
  • 10-32 female connector above



Basic data
Sensitivity (±10 %) 10.2 mV/(m/s²)

Measuring range ±50 gPK ±490 m/s²PK

Frequency range (≤5 %) 0.5... 3,000 Hz

Resonance frequency ≥40.000 Hz

Phase response (at 21 ° C) (±5 °) 2... 3,000 Hz

Wide band resolution 0.00015 g RMS 0,0015 m/s² RMS [1]

Linearity error ±1 %   [2]

Transverse acceleration sensitivity ≤5 %   [3]
Conditions of use
Overload limit (shock) ±5.000 gPK ±49.000 m/s²PK

Temperature range (operation) 0... 150 ° F 18... 66 ° C

Strain sensitivity (footprint) 0.01 g/µε 0.1 (m/s²)/µε [1]
Technical properties
Supply voltage 18... 30 V DC

Constant power supply 2... 20 mA

Output impedance ≤300Ω

Bias voltage 7... 12 V DC

Discharge charge time constant 1.0... 3.0 s

Spectral noise (10 Hz) 11 µg/√Hz 110 (µm/s²)/√Hz [1]

Spectral noise (100 Hz) 3.4 µg/√Hz 33 (µm/s²)/√Hz [1]

Spectral noise (1,000 Hz) 1.4 µg/√Hz 14 (µm/s²)/√Hz [1]
Physical properties
Size - length 0.40 in 10.2 mm

Size - width 0.40 in 10.2 mm

Mass 0.14 oz 4.0 grams [1]

Sensor element Ceramic

Geometry of the sensor element Shear principle

Housing material Titanium

Sealing Hermetic

Electrical connection 10-32-coaxial socket

Connecting position Top

Fixing Adhesive mounting

Mounting thread 5-40 female

Installation torque 4... 5 in-lb 45... 56 NCM
Notes
[1] Typically

[2] Zero-balance just, determined using the method of least squares

[3] Transverse acceleration sensitivity typically ≤3%

[4] Details: see PCBs Declaration of conformance PS023
Included accessories
080A109 Mount wax -1

080A25 Adhesive mounting, 0,438 "Allen, 5-40 thread, anodized aluminum -1

080A90 Superglue -1

081A27 Mounting bolts, 5-40 on 5-40 -1

ACS-1 Frequency response, traceable to NIST (10 Hz up to the upper 5%-Punkt) -1

M081A27 Metric mounting bolts, 5-40 M3 x 0.50 -1
(T) TEDS memory in accordance with IEEE PP1451. 4
Bias voltage 7.5... 13 V DC
