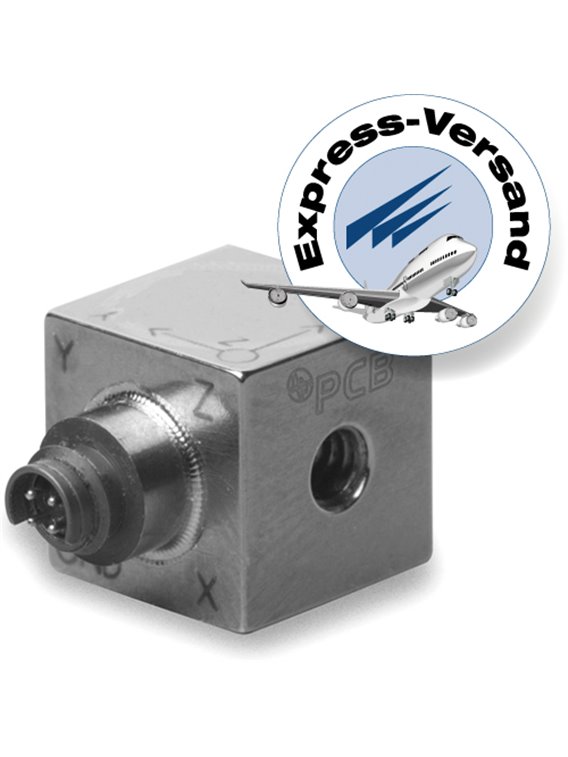

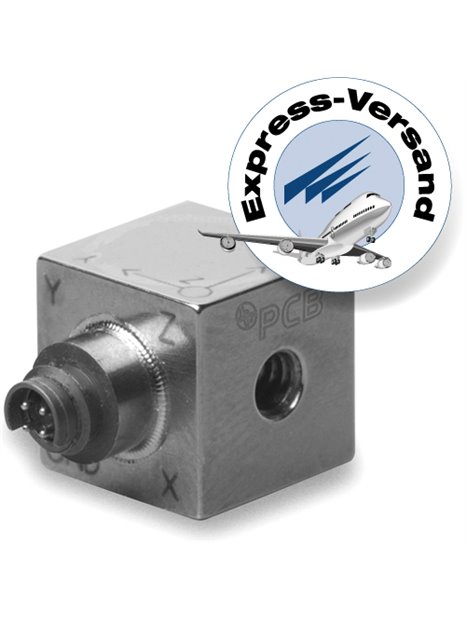

PCB-356B21/NC
- Triaxial ICP® miniature vibration sensor,
- Measuring range 500 g
- Sensitivity 10 mV / g,.
- Frequency range 2... 7,000 Hz,
- Weight 4 grams.
- 4-pin mini connector on the side.
- Without cable
| Basic data | |||
| Sensitivity (±10 %) | 10 mV / g | 1.02 mV/(m/s²) | |
| Measuring range | ±500 gPK | ±4.905 m/s²PK | |
| Frequency range (Y - and Z-axis) (≤5 %) | 2... 10,000 Hz | ||
| Frequency range (X-axis) (≤5 %) | 2... 7,000 Hz | ||
| Resonance frequency | ≥55.000 Hz | ||
| Wide band resolution | 0.004 g RMS | 0.04 m/s² RMS | [2] |
| Linearity error | ≤1 % | [1] | |
| Transverse acceleration sensitivity | ≤5 % | ||
| Conditions of use | |||
| Overload limit (shock) | ±10.000 gPK | ±9≥ 100 MΩs²PK | |
| Temperature range (operation) | -65... 250 ° F | -54... 121 ° C | [3] |
| specifications | |||
| power supply | 18... 30 V DC | ||
| constant power supply | 2... 20 mA | ||
| output impedance | ≤200 Ω | ||
| Bias voltage | 7... 11 V DC | ||
| discharging charging time constant | 0.3... 1.0 s | ||
| settling time (auf Bias-Spannung ±10 %) | < 3s | ||
| spectral noise (1 Hz) | 1,000 µg/√Hz | 9.810 (µm/s²)/√Hz | [2] |
| spectral noise (10 Hz) | 300 µg/√Hz | 2.943 (µm/s²)/√Hz | [2] |
| spectral noise (100 Hz) | ,100 µg/√Hz | 981 (µm/s²)/√Hz | [2 ] |
| Spectral noise (1,000 Hz) | 50 µg/√Hz | 490 (µm/s²)/√Hz | [2] |
| physical properties | |||
| sensor element | ceramic | ||
| Geometry of the sensor element | Shear principle | ||
| Housing material | Titanium | ||
| Sealing | Hermetic | ||
| Size - height | 0.4 in | 10.2 mm | |
| Size - length | 0.4 in | 10.2 mm | |
| Size - width | 0.4 in | 10.2 mm | |
| Mass | 0.14 oz | 4 grams | [2] |
| Electrical connection | 8-36 4-pin | ||
| Connecting position | On the side | ||
| Mounting thread | 5-40 female | ||
| Notes | |||
| [1] | Zero-balance just, determined using the method of least squares | ||
| [2] | Typically | ||
| [3] | The data for temperatures above 121 ° C applies only for transducers mit HT option. | ||
| [4] | Details: see PCBs Declaration of conformance PS023 | ||
| Included accessories | |||
| 080A | Adhesive mounting | -1 | |
| 080A109 | Mount wax | -1 | |
| 081A27 | Mounting bolts, 5-40 on 5-40 | -1 | |
| 081A90 | Mounting bolts, 10-32 on 5-40 | -1 | |
| ACS-1T | Frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5%-Frequenz | -1 | |
| M081A27 | Metric mounting bolts, 5-40 M3 x 0.50 | -1 | |
| (A) bonding | |||
| Included accessories | |||
| 080A90 | Superglue | -1 | |
| 080A109 | Mount wax | -1 | |
| (HT) High temperature electronics | |||
| TempeCouncil advocacy | 65... 325 ° F | -54... 163 ° C | |
| (J) mass insulation of | |||
| frequency range (+ 5%) | 7,000 Hz | ||
| electrical insulation | ≥ 100 MΩ | ||
| Size - height | 0.44 in | 11.2 mm | |
| size - length | 0.40 in | 10.2 mm | |
| size - width | 0.44 in | 11.2 mm | |
| Mass | 0.16 oz | 4.5 grams | |
| attachment | bonding | ||
| Accessories | |||
| 080A90 | cyano | -1 | |
| 080A109 | mounting wax | -1 |
