Strobe A4950
zoom_out_map

Strobe A4950

  • High performance LEDs with lens and reflector system,
  • Flashing 0.5 Hz - 500 Hz frequency range (30 RPM up to 30'000 RPM).
  • Flash frequency divider and multiplier,
  • Control the Flash duration,
  • Adjustable phase ± 180 °
  • Internal or external triggering,
  • Power supply for external laser tacho probe,
  • Trigger output for external device
  • Powered by 2 AA batteries,

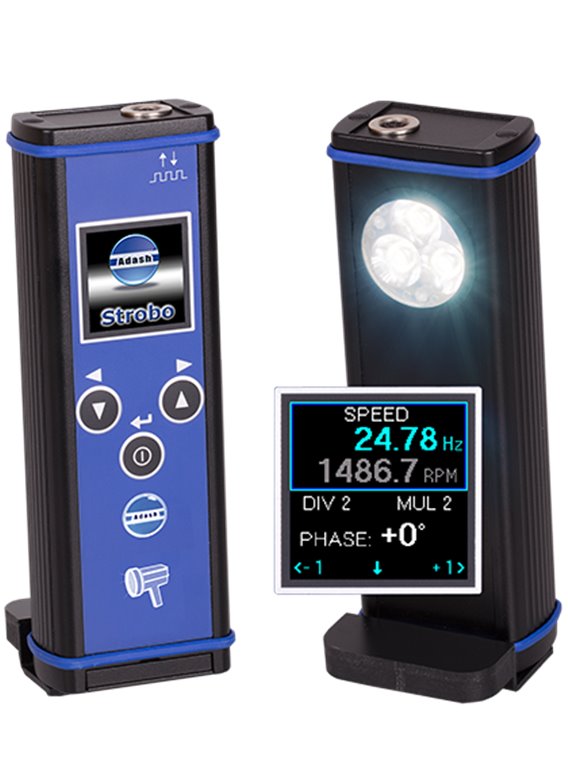

The hand-LED strobe model of a4950 by Adash is suitable for a wide range of applications in machine maintenance and maintenance. The stroboscope causes seem to stop periodic movements and rotations of parts of a machine, which allows a precise visualization. The stroboscope can determine the speed of a rotating shaft model A4950 and allowed measurements synchronized without having to reflective markings must be placed on the shaft. The device can be used also as a speedometer, by an external tacho probe is connected. The strobe model A4950 has three ultra-bright LEDs with optical system as the source of the flash light. The intuitive and simple operation of the device via the integrated 3-button keypad and the legible color graphic display. The power is supplied by two standard or Rechargeable AA batteries.

ADA-A4950

Specific References

Download

ADASH_A4950_Users_Guide

ADASH_A4950_Users_Guide

Download (1.88M)
