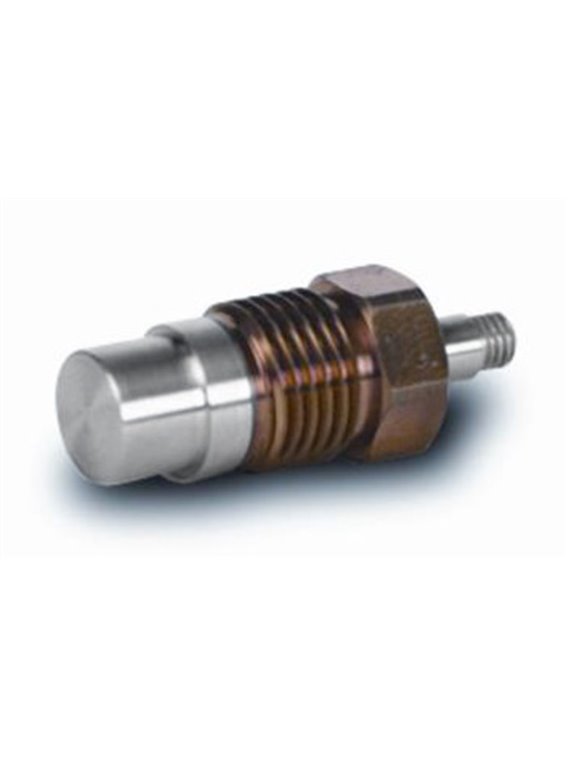

PCB-106M131
zoom_out_map

PCB-106M131

  • ICP® pressure sensor with stainless steel membrane,
  • For acoustic measurements,
  • Beschleunigungskompensiert,
  • Measuring range 57.2 kPa,
  • Sensitivity 36.2 mV / kPa,
  • Lower limiting frequency 0.5 Hz,
  • 10-32 female connector
  • of
    basic data
    measuring range 8.3 psi 57,23 kPa
    usable range 10 psi 68.95 kPa
    Sensitivity (±2. 5%) 250 mV / psi psi/36,25 mV / kPa
    Maximum sudden change of pressure 300 psi kPa 2.068,5
    maximum pressure2,000 psi 13.790 kPa
    resolution resolution 0.0001 psi kPa 0,00069
    resonance frequency ≥60.000 Hz
    rise time ≤ 5 µs
    Lower limiting frequency (-5%) 0.5 Hz
    linearity ≤ 1% FS [1]
    conditions of use
    Acceleration sensitivity ≤ 0.002 psi/g ≤ 0,0014 kPa/(m/s²)
    Temperature range (operation) -65 … 250 ° F -54 … 121 ° C
    Temperature coefficient of sensitivity ≤ 0.03 %/°F ≤ 0,054 %/°C
    Maximum temperature shock(for fraction of a second) 3,000 ° F 1.649 ° C
    Maximum vibration 1,000 g pk 9.807 m/s² pk
    Maximum shock resistance 2,000 g pk 19.614 m/s² pk
    Technical properties
    Discharge charge time constant (at room temperature) ≥ 1 s
    Power 18 … 28 V DC
    constant power supply 2 … 20 mA
    Output impedance ≤ 100 Ω
    Bias voltage 3 … 8 V DC
    Physical properties
    sensor element quartz
    housing material 17-4 (Stainless steel)
    Membrane 316 L (stainless steel)
    sealed sealeddensely welded
    electrical connection 10-32-coaxial socket
    mass 0.53 oz 15.0 grams
    Notes
    [1] zero-based balancing line, determined using the method of least squares
    [2] details: see PCBs Declaration of conformance PS023
    equipment
    060A12 installation sleeve, 9/16-18 2A thread, 9/16 " Allen -1
    060A14 metric mounting sleeve, M14 x 1.25-6 g-thread, 14 mm hex, (stainless steel) -1
    065A37 sealing ring,. 0,497 "outside x 0,437" x 0.025 "tall, brass 3
    PCB-106M131

    Specific References

    Download

    106M131_drawing.PDF

    Technical drawing

    Download (78.53k)

    106M131_manual.PDF

    Operating instructions

    Download (585.92k)

    106M131_specs.PDF

    Technical data sheet

    Download (30.15k)
