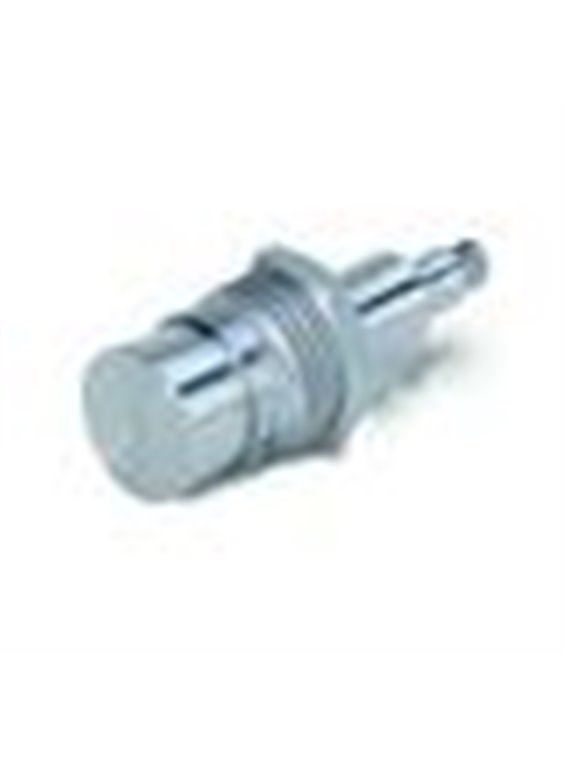

PCB-106B51
zoom_out_map

PCB-106B51

  • ICP® pressure sensor with stainless steel membrane,
  • For acoustic measurements,
  • Beschleunigungskompensiert,
  • Measuring range 35 kPa,
  • Sensitivity 145 mV / kPa,
  • Lower limiting frequency 0.5 Hz,
  • 10-32 female connector
  • basic data
    measuring range (±5 V output range) 5 psi 35 kPa
    usable range 10 psi 69 kPa [2]
    Sensitivity (±15%) 1,000 mV / psi 145 mV / kPa
    maximum sudden change of pressure 100 psi 690 kPa
    Maximum static pressure 500 psi 3.448 kPa
    resolution 0.05 mpsi 0,00034 kPa
    resonance frequency ≥ 40,000 Hz
    rise time ≤ 12 µs
    lower limiting frequency (-5%) 0.5 Hz
    Linearity error ≤ 1% FS [1]
    conditions
    acceleration sensitivity ≤ 0.002 psi/g ≤ 0,0014 kPa/(m/s²)
    temperature range (operation) -65 … 250 ° F -54 … 121 ° C
    Temperature coefficient of sensitivity ≤ 0.03 %/°F ≤ 0,054 %/°C
    Maximum shock (for fraction of a second) 3,000 ° F 1.649 ° C
    maximum acceleration 500 g- pk 4.903 m/s² pk
    maximum shock resistance 1,000 g pk 9.807 m/s ² pk
    technical features
    output polarity (positive pressure) positive
    Discharge charge time constant (at room temperature) ≥ 1 s
    Supply 11 … 30 V DC
    constant power supply 2 … 20 mA
    output impedance ≤ 100 Ω
    Bias voltage 8 … 14 V DC
    Physical properties
    sensor element quartz
    housing material 17-4 (stainless steel)
    Diaphragm 316 L (stainless steel)
    sealing hermetically sealed welded
    Electrical connection 10-32-coaxial socket
    mass 1.13 oz 32 grams
    notes
    [1] zero-based balancing line,. determined with the method of least squares
    [2] for output range up to 10 V the supply voltage must be at least 24 V DC amount. At low bias voltage of the sensor, no negative output range is usable up to-10 V.
    [3] details: see PCBs Declaration of conformance PS023
    equipment
    060A11 acetal mounting sleeve. ¾-16-2A thread, 3/4 "hex -1
    060A13 metric acetal mounting sleeve, M20 x 1.5-6 g-thread, 20 mm hexagonal -1
    065A36 Seal, 0,687 "outside x 0.625" x 0,060 ", Derlin 3
    (S) Emralon coating
    Coating Emralon
    Electrical insulation ≥ 100 MΩ
    (W) waterproof cable
    equipment
    060A11 acetal mounting sleeve, ¾-16-2A thread, 3/4 "hex -1
    (WM) waterproof cable connection
    Accessories
    060A13 metric acetal mounting sleeve, M20 x 1.5-6 g-thread, 20 mm hexagonal -1
