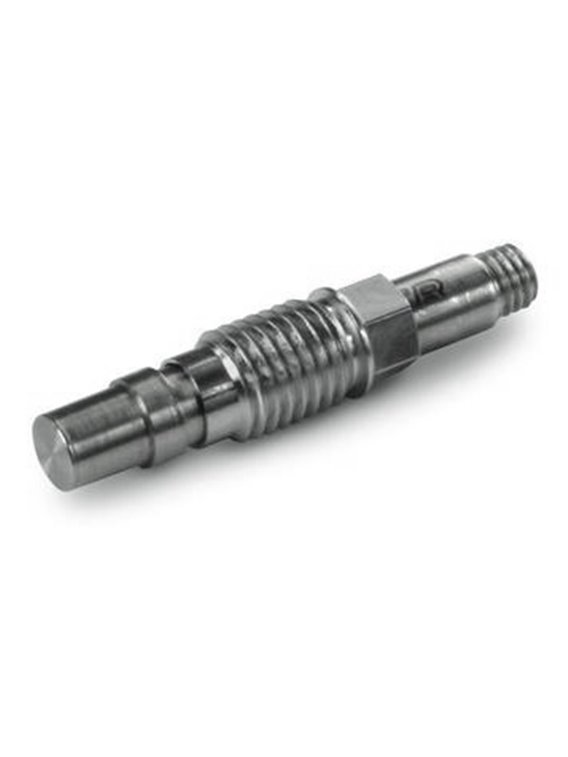

PCB-113B32
zoom_out_map

PCB-113B32

  • ICP® high frequency pressure sensor with INVAR-membrane /-housing,
  • Especially insensitive to temperature transients,
  • Beschleunigungskompensiert,
  • Measuring range 34.475 kPa,
  • Sensitivity 0.145 mV / kPa,
  • Lower limiting frequency 1.0 Hz,
  • 10-32 female connector
  •

    basic data
    measuring range (±5 V output range) 5,000 psi 34.475 kPa

    usable range (output range ±10 V) 10,000 psi 68.950 kPa [2]

    sensitivity (±0, 05 mV / psi) 1.0 mV / psi 0.145 mV / kPa

    maximum pressure 15,000 psi 103.425 kPa

    Resolution 0,02 psi 0.14 kPa

    resonance frequency ≥400,000 Hz

    rise time (reflected pressure) ≤ 1.5 µs

    Lower limiting frequency 1.0 Hz

    linearity ≤1.0% FS   [1]
    conditions of use
    Acceleration sensitivity ≤ 0.002 psi/g ≤ 0,0014 kPa/(m/s²)

    temperature range (operation) -100 … 275 ° F -73 … 135 ° C

    Temperature coefficient of sensitivity ≤ 0,1 %/°F ≤0.18 %/°C

    maximum shock (for fraction of a second) 3,000° F 1,650 ° C

    maximum acceleration 2,000 g pk 19.614 m/s 2 pk

    Maximum shock resistance 20,000 g pk 196.140 m/s² pk
    Technical properties
    Output polarity (positive pressure) positive

    Discharging charging time constant (at room temperature) 0.3 … 1,0 s

    supply 20 … 30 V DC

    Constant power supply 2 … 20 mA

    output impedance < 100Ω

    Bias voltage 8 … 14 V DC
    Physical properties
    Geometry of the sensor element compression principle

    Sensor element quartz

    housing material INVAR

    membrane INVAR

    Sealed sealeddensely welded

    electrical connection 10-32-coaxial socket

    mass 0.2 oz 6.0 grams
    Notes
    [1] zero-based balancing line, determined using the method of least squares

    [2] for output range supply voltage up to 10 V must be at least 24 V DC. At low bias voltage of the sensor, no negative output range is usable up to-10 V.

    [3] details: see PCBs Declaration of conformance PS023
    equipment
    060A03 installation sleeve, 5 /. 16-24-2A thread, 1/4 "hex, (stainless steel) -1

    060A05 installation sleeve, M7 x 0.75-6 g-thread -1

    065A02 sealing ring f for flush mounting, 0,248 "outside x 0.219" x 0.015 "high brass 3

    065A05 gasket spacer, 0,248" outside x 0,221 "x 0.240" high, 17-4 (Stainless steel) -1
    (S) Emralon coating
    coating Emralon

    electricIsolation >100 MΩ

    equipment

    065A08 insulation ring, 0.250 "outside x 0,218" x 0.027 "high, anodized aluminium 3

    065A22 seal, 0.250" x outside 0,218 "x 0.015" high, Torlon or Vespel 3
    (W) Watertight cable connection
    equipment

    060A03 installation sleeve, 5/16-24-2A thread, 1/4 "hex, (stainless steel) -1
    (WM) waterproof cable connection
    equipment

    060A05 installation sleeve, M7 x 0.75-6 g-thread -1
