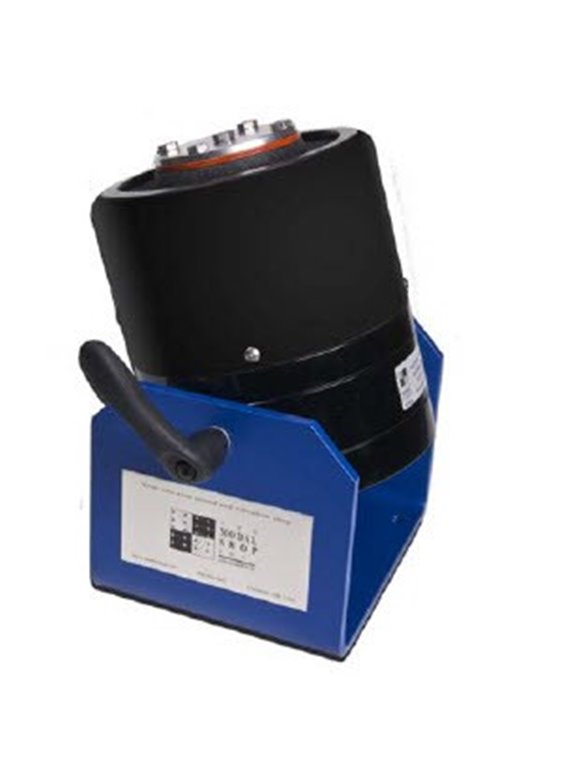

TMS-2075E
- Dual purpose Shaker,
- For the modal analysis as well as for part / component testing,
- Maximum force 334 N,.
- Frequency range 0... 6,500 Hz,
- Stroke 25 mm
| specifications | |||
|---|---|---|---|
| Basic data | English units | SI units | |
| pk max force, sine (bei Luftkühlung) | 40 lbf | 178 N | |
| pk max force, sine (bei manueller Kühlung) | 75 lbf | 334 N | [1] |
| maximum force, random vibration RMS (bei Luftkühlung) | 17 lbf | 76 N | |
| max force, random vibration RMS (bei manueller Kühlung) | 28 lbf | 125 N | [1] |
| pk max force, shock (50 ms) | 75 lbf | 334 N | |
| hub pk-pk, constant stimulation | 1.0 in | 25.4 mm | |
| stroke, clipping area | 1.03 in | 26.2 mm | |
| nominal frequency range | 0... 6,500 Hz | [2] | |
| Basic resonance | > 4,000 Hz | [2] | |
| maximum vibration velocity | 70 in / s pk | 1.8 m/s pk | |
| maximum acceleration amplitude (keine Last) | 75 gPK | 736 m/s² PK | |
| Maximum acceleration amplitude (0.45 kg load) | 38 gPK | 373 m/s² PK | |
| Maximum acceleration amplitude (2.3 kg load) | 12 gPK | 118 m/s² PK | |
| Maximum acceleration amplitude (Resonance) | 120 gPK | 1,177 m/s² PK | |
| Maximum acceleration amplitude (Shock top) | 150 gPK | 1.472 m/s² PK | |
| Typical maximum payload | 7 lb | 3.18 kg | |
| Physical properties | |||
| Thread the anchor plate | 5 x 10-32 | [3] | |
| Ankermasse | 1 lb | 0,454 kg | |
| Stiffness of the suspension | 60 lbf / in | 10.5 N/mm | |
| Nominal drive current (with air cooling) | 11 ARMS | ||
| Nominal drive current (with manual cooling) | 22 ARMS | ||
| Magnetic stray fields, 38 mm above the head plate | >15 Gauss>0,0015 Tesla | ||
| magnetic stray field, 25 mm next to the housing | >20 Gauss | >0.002 Tesla | |
| Manual cooling | air: 100 cfm water: 15 cfm | Air: 170 m³/h water: 25.5 m ³/h | |
| nominal dimensions (Höhe x Breite x Tiefe) | 10,5 x 12,55 x 6.5 in | 267 x 319 x 165 mm | [4] |
| nominal weight | 35 lb | 16 kg | |
| Temperature | 40... 100 ° F, < 85% RH | 4... 38 ° C, < 85% RH | |
| notes | |||
|---|---|---|---|
| [1] | for the use of maximum force has Shaker with a TMS-2050E09 power amplifier powered and cooled manually. | ||
| [2] | Lastabhängig; the specified values apply when no load. | ||
| [3] | Chuck adapter for attachment of Stingers in the scope of delivery included | ||
| [4] | exact dimensions: see technical drawing in the data sheet | ||
| Included accessories | ||
|---|---|---|
| Base | EasyTurn™ suspension, mounting base allows orientation of the Shaker toward the brisk on point | (1) |
| Cable | Shaker cable, length 2.4 m | (1) |
| 2000 X 03 | Accessory Kit (includes case, Stinger, Chuck adapter, wrench, spare fuse and other accessories) | (1) |
TMS-2075E
