TMS-2060E
zoom_out_map

TMS-2060E

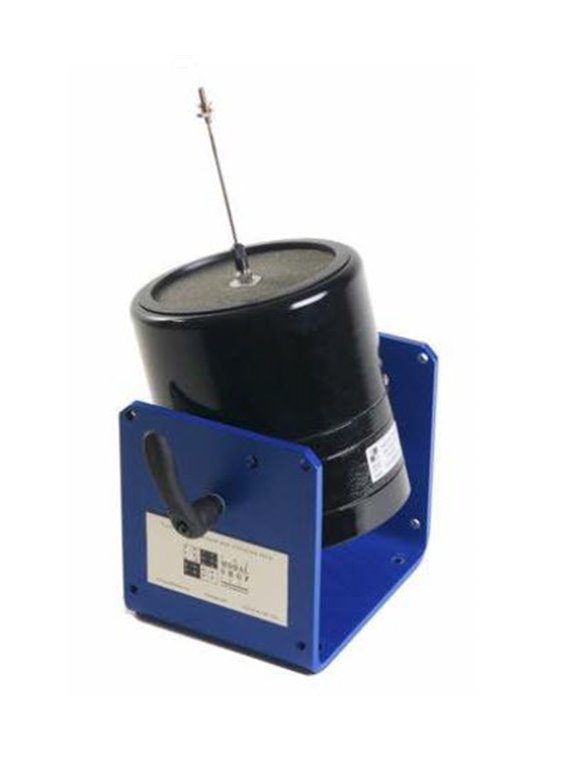

  • Modal Shaker
  • Kraft 267 N,.
  • Frequency range 0... 6,000 Hz,
  • Stroke 36 mm
specifications
Basic data English units SI units
pk max force, sine
(bei Umgebungsluftkühlung)
30 lbf 133 N
pk max force, sine
(at Manual cooling)
60 lbf 267 N [1]
hub pk-pk 1.4 in 36 mm [2]
nominal frequency range 0... 6,000 Hz [3] [4]
nominal reason resonance > 4,000 Hz [4]
maximum acceleration amplitude
(ohne Last)
100 g pk 1000 m/s² pk
Maximum vibration velocity 120 in / s pk 3 m/s pk
protections mechanical stops
Overcurrent protection by in-line fuses
physical properties
current consumption at ambient air cooling 9 A RMS
Nominal power consumption at manual Kühdevelopment 18 A RMS
nominal anchor resistance 1 ? [5]
anchor suspension 8 bending hinges made of carbon fiber composite
Effective Ankermasse 0.6 lb 0,272 kg
nominal dimensions
(Höhe x Breite x Tiefe)
10.8 x 12.6 x 6.5 in 273 x 319 x 165 mm [6]
nominal weight 37 lb 17 kg
temperature 40... 100 ° F,
< 85% RH
4... 38 ° C,
< 85% RH

notes
[1] for the use of maximum force has Shaker with a power amplifier suitable powered and cooled manually.
[2] mechanical stops at 19 mm
[3] specifying the frequency range based on the value recommended in ISO 5344: basic resonance × 1.5
[4] Lastabhängig
[5] at room temperature (20 ° C)
[6] Exact dimensions: see technical drawing in the data sheet





Included accessories
Base EasyTurn™ suspension, mounting base allows orientation of the Shaker toward the brisk on point (1)
Cable Shaker cable, length 3 m (1)
Mounting accessories 10-32 mounting adapter and Chuck for the mounting of the Stingers (1)
2150 G 12 Stingerkit, Stingerdurchmesser 1.6 mm (1)
2155 G 12 Stingerkit, Stingerdurchmesser 2.4 mm (1)
K2160G Steel wire Stingerkit (1)
TMS-2060E

Specific References

Download

TMS_2060_Datasheet

TMS_2060_Datasheet

Download (376.41k)
