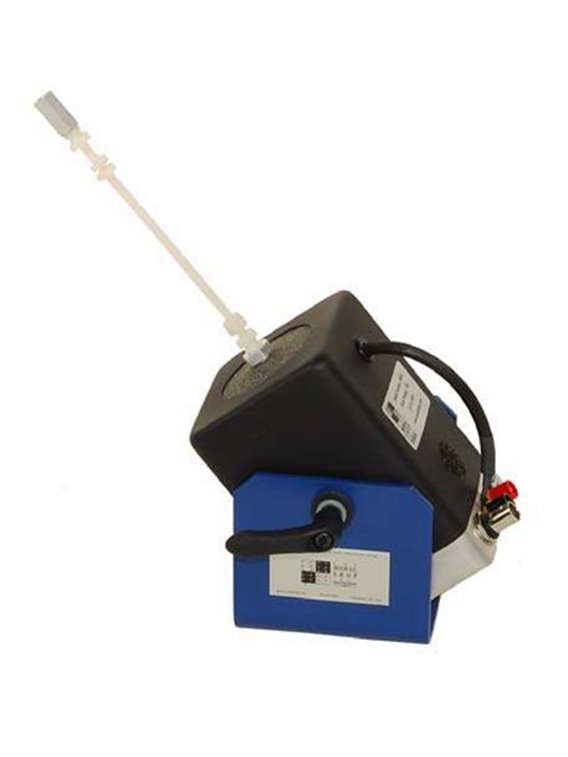

  • Mini SmartShaker™ with integrated power amplifier,
  • Force 20 N,.
  • Frequency range 0... 11,000 Hz,
  • Stroke 9 mm
Specifications
Basic dataEnglish unitsSI units
Max force, sine (pk) 4.5 lbf 20 N [2]
Max force, random vibration (RMS) 3 lbf 13.3 N [2]
Max force, shock (pk) 9 lbf 40 N
Hub pk-pk, constant stimulation 0.2 in 5 mm
Stroke, clipping area 0.35 in 9 mm
Frequency range 0... 11,000 Hz [1]
Maximum acceleration amplitude
(no load)
64 gPK 628 m/s² PK [1]
Maximum acceleration amplitude
(0.045 kg load)
26 gPK 255 m/s² PK [1]
Maximum acceleration amplitude
(0.45 kg load)
4.2 gPK 41 m/s² PK [1]
Maximum acceleration amplitude
(maximum load: 0.91 kg)
2.2 gPK 21.6 m/s² PK [1]
Max.Current consumption 5A
nominal anchor resistance 1.5 ?
integrated amplifier
efficiency 92%
Input range (RMS) 0... 1 V AC [3]
max power handling (RMS) input 1.9 V AC
power 12... 21 V DC [4]
output power 55 W [5]
typical THD < 0.02% [6]
cooling Convection
gain levels (nominal) steamed 10 dB, 18 DB, 24 dB [7]
warning indicator for overload or high temperature [7]
Automatic shut-off at too high a temperature or great power [7]
physical properties
nominal Ankermasse 0.07 lb 32 grams
Nominal rigidity of the suspension 15 lbf / in 2.63 N/mm
nominal dimensions
(Höhe x Breite x)Depth)
5.3 x 6.75 x 3.5 in 135 x 171 x 89 mm
Mass 7 lbs 3.1 kg
Inlet BNC connector
Outlet Mini Terminal
Screw-on mounting 10-32 thread



Notes
[1] Load-dependent
[2] Air cooled
[3] Typically for maximum output signal (depending on the amplification factor)
[4] About included 60W-Netzteil (19 V <)small >DC, 3.15 A)
[5] Efficiency of 92% when using the supplied AC adaptor
[6] Total harmonic distortion (THD) and noise at 1,000 Hz, 1 W
[7] Display via LEDs

included supply
power adapter Power 60 W, input 100 ... 240 V AC , output of 19 V DC (1)
holder Tilt bracket with mounting holes (1)
2110G06 Dreierpack nylon Stinger with 10-32 threads (1)
