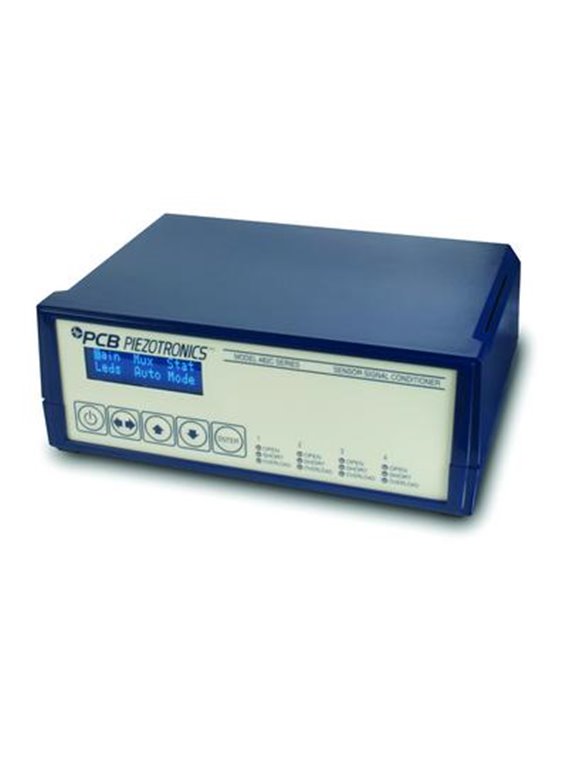

PCB-482C24

  • 4-channel power supply unit,
  • Inputs: ICP® and voltage,
  • DC coupling and ' clamped ' output ' option can be activated
  • Continuous gain of 0.1 …?200 ?,
  • BNC-inputs and outputs,
  • Including power supply
  •

    basic data
    number channels 4

    sensor types ICP, voltage <! –
    • DC - coupling (optional)->


    Voltage gain 0.1 … 200x

    accuracy < br(Verstärkungsfaktor 0,1x … 0,4x) ≤5%

    Accuracy < br(Verstärkungsfaktor 0,5x … 200X) ≤1%

    output range ±10 V

    Frequency range (-5%) < br(Verstärkungsfaktor 0,1x … 99,9x) 0.05 … 100,000 Hz   [1]

    frequency range (-5%) < br(Verstärkungsfaktor 100x … 200X) 0.05 … 50,000 Hz

    maximum phase error ±1 °

    crosstalk -72 dB

    TEDS support Yes

    bias voltage/error display Open circuit/short circuit/overload
    Manual
    Control keypad

    Digital display 2 lines, 16 characters
    digital interface
      interface

    Data rates 19.200 bps

    Start, stop, parity 1, 8, 1, no

    hand shake RTS/CTS

    Cable length (max) 50 ft 15.2 m
    conditions of use
    temperature range 32 … 120 ° F 0 … 50 ° C
    Technical characteristics
    power supply < br(für mitgeliefertes Netzteil) AC

    mains voltage (50 … 60 Hz) 100 … 240 VAC

    power consumption (power supply unit) ≤1.6 A

    Spannungsversorgung
    (sensor-Versorgungseinheit)
    DC

    Spannungsversorgung
    (sensor-Versorgungseinheit)
    9 … 18 V DC

    Stromaufnahme
    (sensor-Versorgungseinheit)
    ≤2.5 A

    supply voltage (for sensor) 24 V DC

    Constant power supply (for sensor) 0 … 20 mA   [2]

    Overload threshold (±0. 2 V pk) 10 V PK

    DC offset (AC coupled) ≤50 mV

    DC offset (DC coupled, amplification factor 0, 1 x … 99, 9 x) < 10 mV

    DC offset (DC coupled, gain 100x … 200x) < 20 mV

    output impedance ≤50Ω

    "clamped output" option enabled by default   [4]

    wide band noise (1 … 10,000 Hz) (amplification factor 1 x) 50.0 µV rms   [3]

    spectral noise (1 Hz) (amplification factor 1 x) 8.0 µV / √Hz   [3]

    spectral noise (10 Hz) (amplification factor 1 x) 1.5 µV / √Hz   [3]

    spectral noise (100 Hz) (amplification factor 1 x) 1.0 µV / √Hz   [3]

    Spectral noise (1,000 Hz) (amplification factor 1 x) 1.0 µV / √Hz   [3]

    spectral noise (10,000 Hz) (amplification factor 1 x) 1.0 µV /√Hz   [3]

    wide band noise (1 … 10,000 Hz) (amplification factor x 10) 75.0 µV rms   [3]

    spectral noise (1 Hz) (amp ärkungsfaktor 10 x) 20.0 µV / √Hz   [3]

    spectral noise (10 Hz) (amplification factor x 10) 1.5 µV / √Hz   [3]

    Spectral noise (100 Hz) (amplification factor x 10) 1.0 µV / √Hz   [3]

    spectral noise (1,000 Hz) (amplification factor x 10) 1.0 µV / √Hz   [3]

    spectral noise (10,000 Hz) (amplification factor x 10) 1.0 µV / √Hz   [3]

    wide band noise (1 … 10,000 Hz) ( Amplification factor100 x) 350 µV rms   [3]

    spectral noise (1 Hz) (gain 100 x) 100,0 µV / √Hz   [3]

    spectral Noise (10 Hz) (gain 100 x) 10.0 µV / √Hz   [3]

    spectral noise (100 Hz) (gain 100 x) 8.0 µV / √Hz   [3]

    Spectral noise (1,000 Hz) (gain 100 x) 6.0 µV / √Hz   [3]

    spectral noise (10,000 Hz) (100 x gain) 6.0 µV / √Hz   [3]
    physical properties
    electrical connection (sensor input) BNC Jack

    electric Connection (output) BNC socket

    electrical connection (DC power supply) 6-pin mini DIN socket

    electric Anschluss
    (RS-232-Digitalschnittstelle)
    DB-9 connector

    size - height 3.2 in 8.1 cm

    size -. Wide 8.0 in 20 cm

    Size - deep 5.9 in 15 cm

    mass 2.00 lb 908 grams
    notes
    [1] 0 Hz @ DC coupled

    [2] configurable, default setting at the factory: 4 mA (±1. 0 mA). The channels can individually be configured.

    [3] typically with AC coupling

    [4] see operating instructions

    [5] Details: see PCBs Declaration of conformance PS024
    equipment
    017AXX power cord -1

    100-7103-50 connection cable, length 1.8 metres, 9-pin male to 9-pin female- -1

    488 B 14/NC power supply -1

    EE75 Configuration software "MCSC" -1
