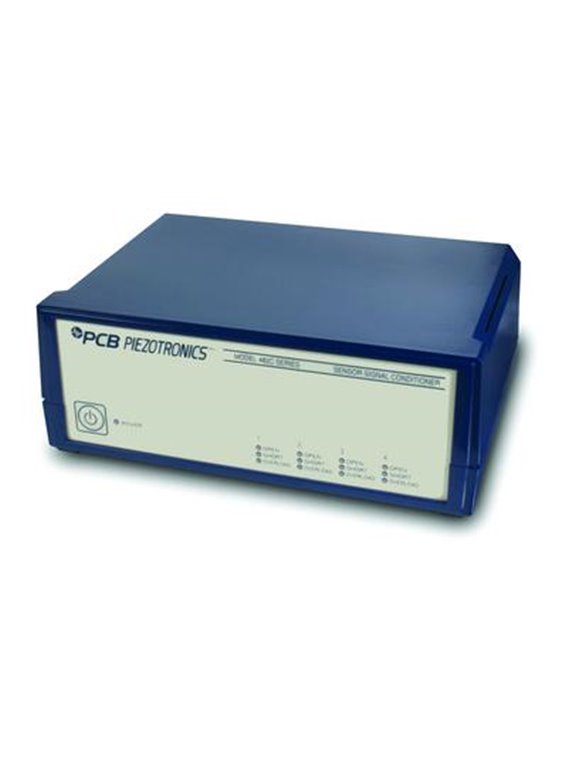

PCB-482C15
zoom_out_map

PCB-482C15

  • 4-channel power supply unit,
  • Inputs: ICP® and voltage,
  • Amplification factors 1 x, 10 x and 100 x,
  • BNC-inputs and outputs,
  • Including power supply
  • basic data
    number channels 4
    sensor type ICP, voltage [2]
    Spannungsverstä strength (±1%) (at 500 Hz) 1 x / 10 x / 100 x [2]
    (maximum) output range ±10 V
    lower limiting frequency (-5%) 0.05 Hz [1]
    Upper cut-off frequency (-3 dB) 50,000 Hz
    Upper cut-off frequency (-5%) > 17,000 Hz
    phase shift (at 1,000 Hz) ±1 °
    Ü youõre (maximum) -72 dB
    bias voltage/error (via LEDs) display Open circuit/short circuit/overload
    Conditions of use
    temperature range (operation) 32 … 120 ° F 0 … 50 ° C
    technical characteristics
    power supply (for supplied AC adaptor ) AC
    mains voltage (47 … 63 Hz) 100 … 240 V AC
    Power consumption (power supply unit) ≤ 0.7 A
    power supply (sensor power supply unit) DC voltage
    Power supply (sensor power supply unit) 32 … 38 V DC
    power consumption ( Sensor-Versorgungseinheit) < 0.25 A
    supply voltage (±1 V DC) (for sensor) 26 V DC
    Constant power supply (for sensor) 0 … 20 mA [3]
    ± 10/5 V pk Overload threshold (±1. 0 V pk) [2]
    DC Offset < 20 mV
    output impedance 50 Ω
    wide band noise (1 … 10,000 Hz) (amplification factor 1 x) 5.6 µV rms [4]
    spectral noise (1 Hz) 0.67 µV / √ Hz [4]
    Spectral noise (10 Hz) 0,10 µV / √ Hz [4]
    spectral noise (100 Hz) 0.06 µV/ √ Hz [4]
    spectral noise (1,000 Hz) 0.06 µV/. √ Hz [4]
    spectral noise (10,000 Hz) 0.05 µV / √ Hz [4]
    wide band noise (1 … 10,000 Hz) (Verstä rkungsfaktor 10 x) 21 µV/rms [4]
    spectral noise (1 Hz) 5.10 µV / √ Hz [4]
    spectral noise (10 Hz) 0.60 µV / √ Hz [4]
    spectral noise (100 Hz) 0.22 µV / √ Hz [4]
    spectral noise (1,000 Hz) 0.22 µV / √ Hz [4]
    spectral noise (10,000 Hz) 0.19 µV / √ Hz [4]
    wide band noise (1 … 10,000 Hz) (Verstä rkungsfaktor 100 x) 165 µV/rms [4]
    spectral noise (1 Hz) 57 µV / √ Hz [4]
    spectral noise (10 Hz) 5.2 µV / √ Hz [4]
    spectral noise (100 Hz) 1.7 µV / √ Hz [4]
    spectral noise (1,000 Hz) 1.8 µV / √ Hz [] 4]
    spectral noise (10,000 Hz) 1.4 µV / √ Hz [4]
    physical properties
    electrical connection (ICP® sensor input) BNC-connector
    electrical connection (output) BNC Jack
    electrical connection (DC power supply) 5-pin DIN female
    Size - height 3.2 in 8.1 cm
    size - width 8.0 in 20 cm
    Size - deep 5.9 in 15 cm
    Size 1.25 lb 567 grams
    notes
    [1] the lower cut-off frequency tolerance: ±25%
    [2] Adjustable via internal jumper
    [3] configurable, default setting at the factory: 4 mA (±0. 5 mA). The channels of k & wl; can be individually configured.
    [4] typically
    [5] details: see PCB Declaration of Conformance PS024
    equipment
    017AXX cord -1
    488 B 04/NC power supply -1
