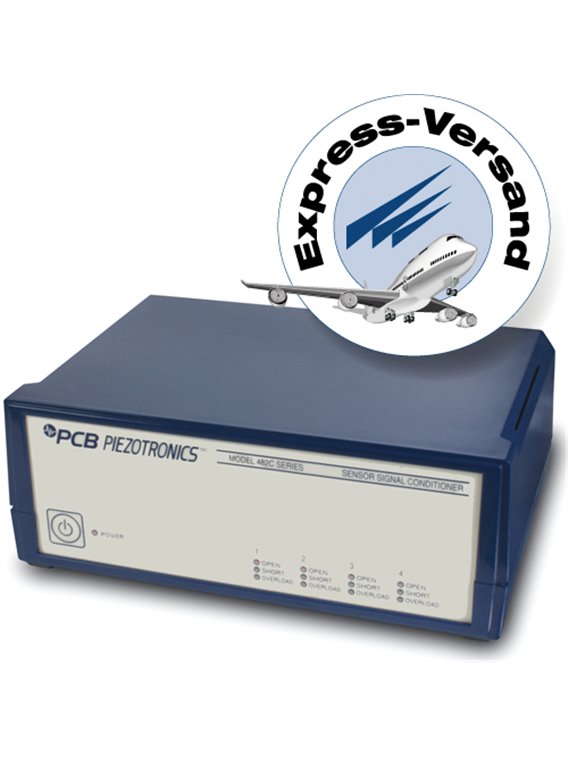

PCB-482C05
    zoom_out_map

      PCB-482C05

      • 4-channel power supply unit,
      • Inputs: ICP®,
      • Gain 1 x,
      • BNC inputs and outputs,
      • Including power supply unit
      basic data
      number channels4
      sensor typeICP
      voltage gain (±1%) (at 500 Hz)1 x
      (maximum) output range±10 V
      lower limiting frequency (-5%)< 0,1 Hz
      Upper cut-off frequency (-5%)> 1,000,000 Hz
      phase shift (at 1,000 Hz)±1 °
      crosstalk (max)-72 dB
      Bias voltage/error (via LEDs) displayOpen circuit/short circuit/overload
      conditions
      temperature range ( Operation)32... 120 ° F0... 50 ° C
      specifications
      power supply (for supplied AC adaptor)AC
      mains voltage (47... 63 Hz)100... 240 V < small vertical-align:-3px = "" > AC
      power consumption (power supply)?0. 7 A
      power supply (sensor supply)DC voltage
      Power supply (sensor power supply unit)32... 38 V DC
      power consumption (sensor power supply unit)< 0.25 A
      supply voltage (±1 V (DC) (for sensor)26 V DC
      constant power supply (for sensor)2... 20 mA[1]
      pk ±10 VOverload threshold (±1. 0 V pk)
      DC Offset< 20 mV
      Output impedance50 Ω
      Wide band noise (1... 10,000 Hz)3.5 µV rms[2]
      spectral noise (1 Hz)1.30 µV/√Hz[2]
      Spectral noise (10 Hz)0.10 µV/√Hz[2]
      Spectral noise (100 Hz)0.08 µV/√Hz[2]
      Spectral noise (1,000 Hz)0.07 µV/√Hz[2]
      Spectral noise (10,000 Hz)0.07 µV/√Hz[2]
      Physical properties
      Electrical connection (ICP® sensor input)BNC connector
      Electrical connection (output)BNC connector
      Electrical connection (DC power supply)5-pin DIN female
      Size - height3.2 in8.1 cm
      Size - width8.0 in20 cm
      Size - depth5.9 in15 cm
      Mass1.25 lb567 grams
      Notes
      [1]Configurable, default setting at the factory: 4 mA (±0. 5 mA). TheChannels can individually be configured.
      [2]Typically
      [3]Details: see PCB Declaration of conformance PS024
      Included accessories
      017AXXPower cord-1
      488B 04/NCPower supply-1
