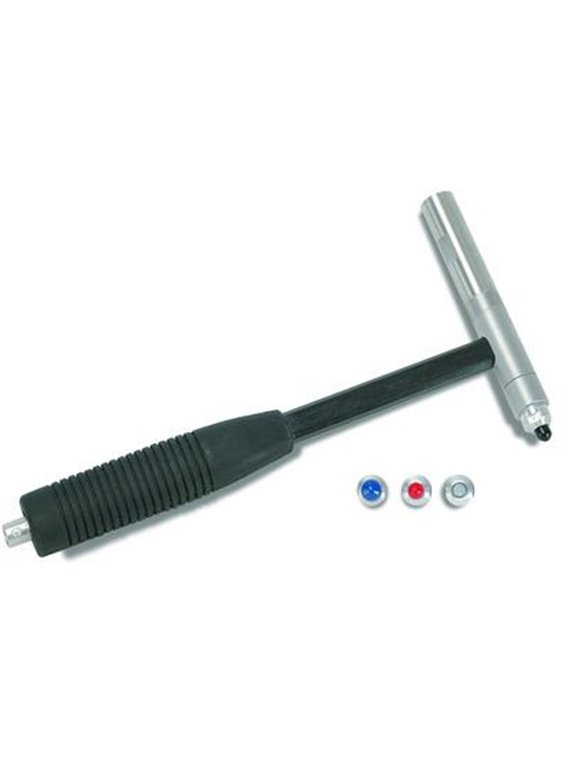

PCB-086C02
- Impact hammer with integrated ICP® power sensor,
- Hammer mass 0.14 kg,
- Force up to 440 N
- Sensitivity 12 mV / N,
- Includes additional tips, mass and carrying case
| basic data | |||
| Sensitivity (± 15%) | 50 mV / lbf | 11.2 mV / N | |
| measuring range | ± 100 lbf pk | ± 444 N pk | |
| resonant frequency | ≥22.000 Hz | ||
| linearity error | ≤1% | ||
| Technical characteristics | |||
| supply voltage | 20 ... 30 V DC | ||
| Constant current supply | 2 ... 20 mA | ||
| output impedance | <100 Ω | [1] | |
| Bias voltage | 8 ... 14 V DC | ||
| discharging | ≥500 s | [1] | |
| physical properties | |||
| sensor element | quartz | ||
| seal | epoxy resin | ||
| hammer mass | 0.34 lb | 0.16 kg | |
| Diameter of the head | 0.62 in | 1.57 cm | |
| Diameter of Hammer tips | 0.25 in | 0.63 cm | |
| hammer length | 8.5 in | 21.6 cm | |
| connection | On the bottom | ||
| additional mass | 2.6 oz | 75 grams | |
| electrical connection | BNC connector | ||
| Hints | |||
| [1] | typically, | ||
| [2] | Details: see PCB Declaration of Conformance PS068 | ||
| included supply | |||
| 081B05 | Mounting bolts (10-32 to 10-32) | -2 | |
| 084A08 | Additional mass - Steel, 0.6 "diameter | -1 | |
| 084B03 | Hammer tip - hard (steel) | -1 | |
| 084B04 | Hammer tip - medium (white plastic) | -1 | |
| 084C05 | Hammer tip - soft (black) | -2 | |
| 084C11 | Hammer tip - especially soft (red) | -2 | |
| 085A10 | Vinyl cover for medium-hammer tip (blue) | -2 | |
| HCS-2 | Calibration of the impact hammer Series 086 | -1 | |
| (T) TEDS memory IEEE PP1451.4 | |||
