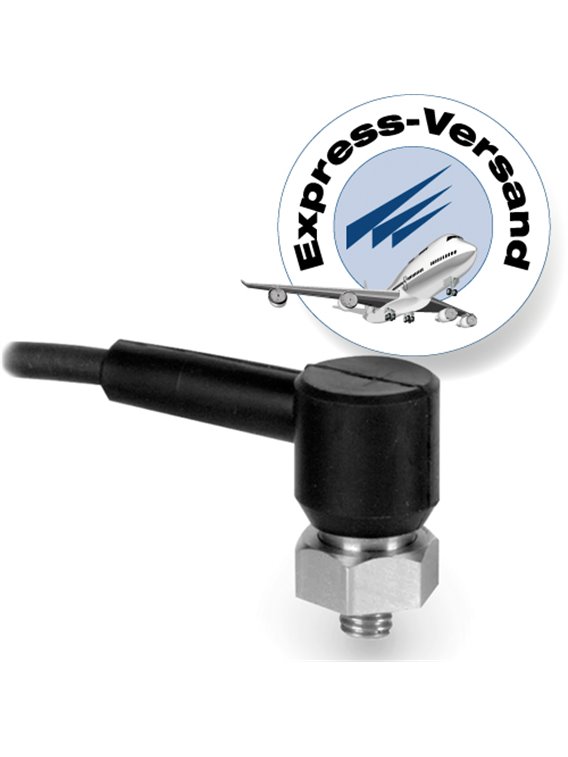

PCB-(M)607A12
    zoom_out_map

      PCB-(M)607A12

    • Industrial ICP® vibration sensor,
    • Measuring range 10 g,
    • Sensitivity500 mV / g,
    • Frequency range 0.5 … 3,000 Hz,
    • One-point calibration at 100 Hz,
    • Free ausrichtbares integrated cable, length 3 m,
      ending on cut end
    • basic data
      sensitivity (±20%)500 mV / g51.0 mV/(m/s²)[7]
      measuring range± 10 g±98 m / s²
      Frequency range (± 3 dB)30 … 180,000 cpm0.5 … 3,000 Hz[1]
      resonance frequency1,500 kcpm25,000 Hz[3]
      Wide band resolution300 µg2.943 µm / s ²[3]
      linearity≤1%[4]
      Transverse acceleration sensitivity≤ 7%
      conditions of use
      Overload limit (shock)5,000 g pk49,050 m/s² pk
      temperature range-65 …200 °F-54 … 93 ° C
      Type of protectionIP68
      Technical characteristics
      settling time (on bias voltage ± 1%)≤ 5.0 s
      discharging charging time constant≥ 0.3 s
      Power18 … 28 V DC
      constant power supply2 … 20 mA
      Output impedance< 500 Ω
      Bias voltage8 … 12 V DC
      Spectral noise (10 Hz)8 µg / √ Hz78.5 (µm / s ²) / √ Hz[3]
      spectral noise (100 Hz)3 µg / √ Hz 29.4 (µm / s ²) / √ Hz[3]
      spectral noise (1,000 Hz)3 µg / √ Hz29.4 (µm / s ²) / √ Hz[3]
      electric Insulation (housing)≥ 100 MΩ
      physical properties
      size - Allen9/16 in14 mm
      size ße - height0.97 in24.6 mm
      weight1.1 oz31 grams[3]
      fixingmounting bolt
      Assembly torque(Mounting bolts)7 … 8 ft-lb9.5 … 10.8 Nm[5] [6]
      Assembly torque (hex nut)2 … 5 ft-lb2.7 … 6.8 Nm
      sensor elementceramic
      Geometry of the sensor elementshear principle
      housing materialstainless steel
      sealinghermetically sealed welded
      electrical connectionpotted integrated cable
      cable exitside
      Cable terminationcut end
      cable length10 ft3.0 m
      cable typepolyurethane[2]
      notes
      [1]the upper cut-off frequency tolerance: ±10%
      [2]shielded two-wire cable with twisted pair wires
      [3]typically
      [4]zero-based balancing line, determinedusing the method of least squares
      [5]Assembly requires Allen key 1/8 "(for inch mounting bolts) or 3 mm (for metric mounting bolts).
      [6]of the mounting bolts must be tightened with a higher torque than the hex nut, so that the sensor can easily be removed.
      [7]conversion factor 1 g = 9.81 m/s²
      [8]details: see PCBs Declaration of conformance PS023
      Accessories supplied
      080A156mounting bolts 1/2 "-20 1/4" 28-1
      ICS-2single point calibration at 100 Hz (traceable to NIST)-1
      (M) metric mounting
      equipment
      M080A159Amounting bolts 1/2 "20 M6 x 1-1
      (EX) ATEX approved
      "
