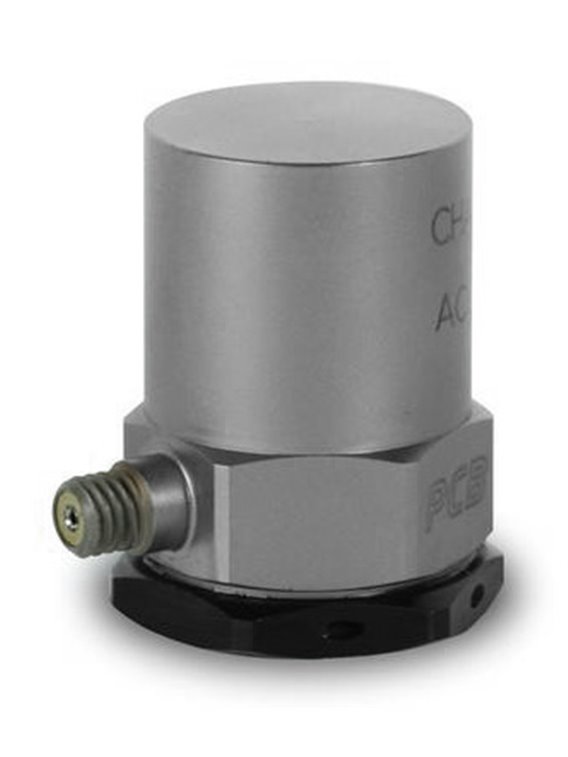

      PCB-357B53

    • Vibration sensor with charge output,
    • Continuous use temperature to 288 ° C,
    • Decay,
    • Measuring range 150 g,
    • Sensitivity 100 pC/g,
    • Upper frequency limit 3,000 Hz,
    • 10-32 female connector on the side
    •

      basic data
      sensitivity (±15%)100 pC/g10.2 pC/(m/s²)

      range150 g pk ±1. 470 m/s² pk

      frequency range (+ 5%)3,000 Hz [3]

      Frequency range (+ 10%)3,500 Hz [3]

      frequency range (+ 3 dB)5,500 Hz [3]

      resonance frequency≥12,000 Hz

      Linearity≤1% [1]

      transverse acceleration sensitivity≤5%
      conditions of use
      Overload limit (shock)±2. 000 g pk±19. 600 m/s² pk

      Temperature-95 … 550 ° F-71 … 288 ° C

      strain sensitivity (footprint)0.0002 g/µε0.002 (m/s²) /. µ ?[2]
      10-32-coaxial socket

      connection positionside

      mounting thread10-32 tapped
      Notes
      [1]zero-based balancing line, determined using the method of least squares

      [2]typically

      [3]the lower cut-off frequency depends on the used signal conditioning electronics.
      Accessories
      081 B 05mounting bolts (10-32 on 10-32)-1

      ACS-1Frequency response, traceable to NIST (10 Hz up to the upper 5% point)-1

      M081B05mounting bolts 10-32 to M6 x 0.75-1
