PCB-030C30
zoom_out_map

PCB-030C30

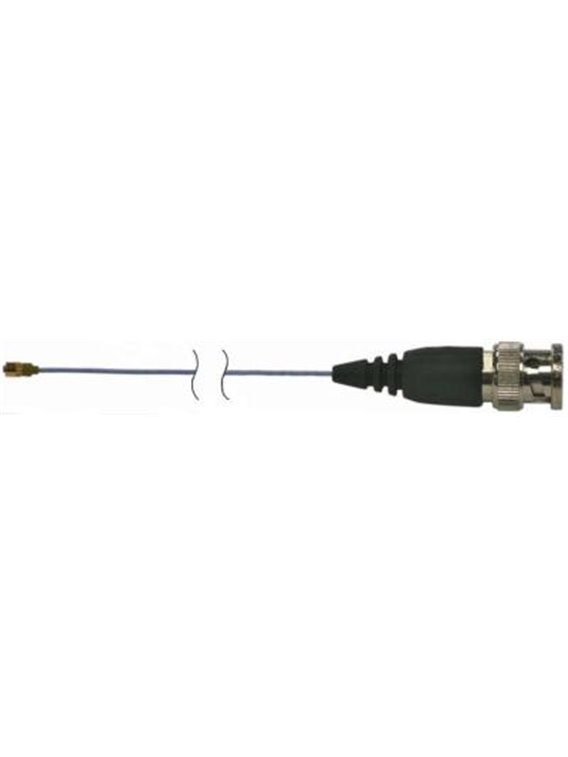

  • Thin low-noise-Teflon coaxial cable,
  • Length 9 meters
  • 3-56 plug to BNC Plug
  • connector/cable end 1
    connector type 3-56 coaxial plug
    Connector (signal) female
    Connection method coupling
    thread 3-56 cap ring
    strain relief Cast sleeve
    temperature range -130 … 500 ° F -90 … 260 ° C
    size - outside diameter 0.12 in 3.0 mm
    Size - length 0.29 in 7.4 mm
    mass 0.004 oz 0.1 g
    connector/cable end 2
    Connector type BNC Plug
    Connector (signal) male
    connection method Bayonet
    temperature range -85… 329 ° F -65 … 165 ° C
    impedance 50 Ω
    Insulation resistance 5,000 M Ω
    Housing material brass
    surface nickel
    size ße - od 0.57 in 14 mm
    size - length 1.1 in 28 mm
    mass 0.51 oz 14 grams
    Cable
    cable length 30 ft 9 m
    cable type Thin low-noise coaxial cable
    Temperature range -130 … 500 ° F -90 … 260 ° C
    Impedance 50 Ω [1]
    capacity (head on screen at 21 ° C) 30 pF / ft pF/m for 98
    diameter the cable sheath 0.042 in 1.09 mm [1]
    coat material PTFE
    coat color Blue
    Wire version 7 fibers 42 AWG
    conductor silver-platedCopper alloy
    head diameter (34 AWG) 0.007 in 0.18 mm [1]
    shielding braided (at least 90% covered)
    Screen material Silberbeschichteter wire
    shade diameter 0.033 in 0.84 mm [1]
    Noise barrier materials (over isolation) liquid graphite
    minimum bending radius 0.5 in 11 mm
    dimensions 0,03 Oz/ft 2.14 gm/m [1]
    notes
    [1] typically
