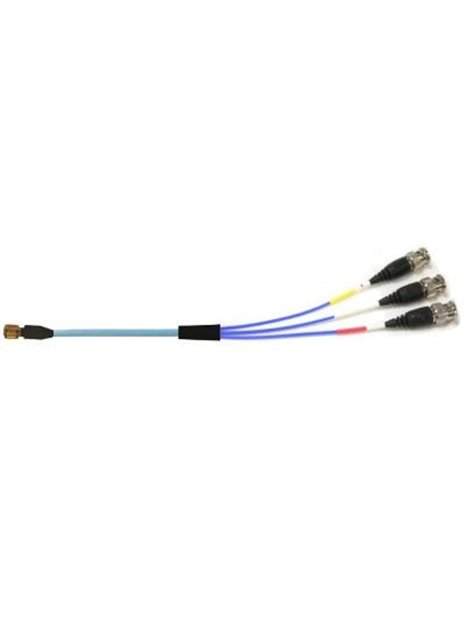

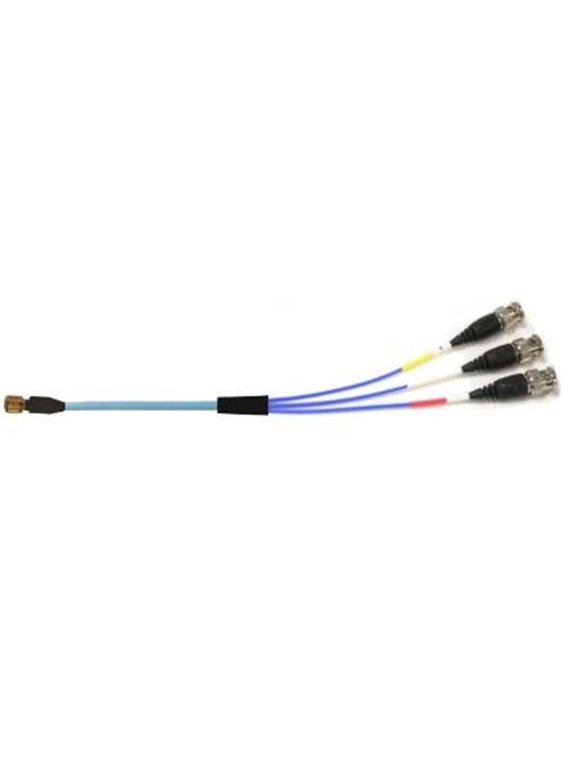

PCB-078G50
- Shielded flexible four-wire cable,
- Length 15 m,
- 4-pin connector to three BNC
| specifications | |||
|---|---|---|---|
| Connector / cable end 1 | English units | SI units | |
| connector type | 4-pin plug | ||
| terminals | Female | ||
| connection method | screw | ||
| connecting thread | 1/4 "-28-coupling ring | ||
| Strain relief | cast spout | ||
| temperature range | -76 ... 325 ° F | -60 ... 162.7 ° C | |
| housing material | Brass | ||
| Size - outer diameter | 0.30 in | 7.6 mm | |
| Size - Length | 1.0 in | 25 mm | |
| Dimensions | 0.11 oz | 3.0 grams | |
| Connector / cable end 2 | |||
| cable termination | Triple Splitting the three coaxial cables | ||
| connector type | Three BNC connector | ||
| Terminal (signal) | Male | ||
| connection method | bayonet | ||
| Strain relief | cast spout | ||
| temperature range | -67 ... 230 ° F | -55 ... 110 ° C | |
| captions | X-axis, Y-axis, Z-axis | ||
| Size - Length | 12 | 30.5 cm | |
| Electric wire | |||
| cable length | 50 ft | 15 m | |
| cable type | Shielded flexible four-wire cable | ||
| core Type | twisted | ||
| temperature range | -58 ... 185 ° F | -50 ... 85 ° C | |
| Capacity (conductor to conductor at 21 ° C) | 14.0 pF / ft | 47.0 pF / m | |
| Capacity (conductor on screen at 21 ° C) | 24.8 pF / ft | 81.0 pF / m | |
| Maximum voltage (rms) | 160 V | ||
| Noise level (pk-pk) | ≤30 mV | ||
| Diameter of the cable sheath | 0.119 in | 3.02 mm | [1] |
| jacket material | polyurethane | ||
| wire version | Solid | ||
| conductors | Silver-plated copper alloy | ||
| Conductor diameter (34 AWG) | 0.006 | 0.16 mm | [1] |
| conductor insulation | virgin PTFE | ||
| shielding | Braided (min. 90% covered) | ||
| screen material | Silver coated wire | ||
| Screen diameter (each fiber 40 AWG) | 0.063 in | 1.60mm | [1] |
| Minimum bending radius | 1.0 in | 30.00 mm | |
| Dimensions | 0.224 oz / ft | 20,834 grams / m | [1] |
