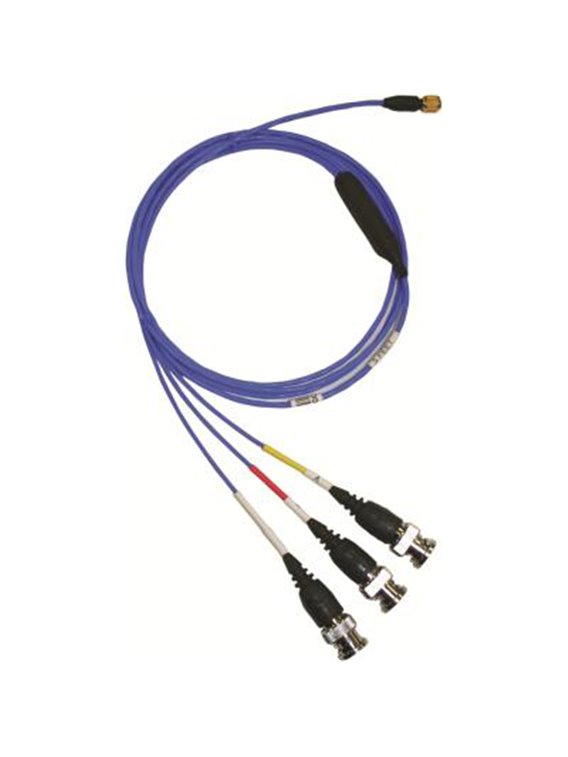

PCB-034G15

  • Four-wire Teflon shielded,
  • Length 4.5 m
  • 4-pin connector to three BNC
  • ,
    connector/cable end 1
    connector type Male 4-pin
    contacts female
    Connection method coupling
    Mount 1/4 "-28 cap ring
    strain relief moulded spout
    " Temperature range -76 … 325 ° F -60 … 162.7 ° C
    housing material brass
    size - Tempe endurchmesser 0.30 in 7.6 mm
    size - length 1.0 in 25 mm
    mass 0.11 oz 3.0 grams
    Connector/cable end 2
    cable termination triple splitting on three coaxial cable
    connector type Three BNC connectors
    Connector (signal) male
    connection method bayonet
    Strain relief Cast spout
    Temperature -67 … 230 ° F -55 … 110 ° C
    labelsX-axis, Y-axis, Z-axis
    Size - length 12 in 30.5 cm
    cable
    cable length 15 ft 4.5 m
    cable type Four-wire shielded cable
    core execution not twisted
    temperature range -130 … 392 ° F -90 …200 ° C
    Maximum tractive force 20 lb 90 N [1]
    capacity (head to head at 21 ° C) 14 pF / ft pF/m for 46
    capacity (head on screen at 21 ° C) 25 pF / ft pF/m for 82
    Maximum voltage (rms) 160 V
    noise level (peak to peak) < 30 mV
    diameter of the cable jacket 0.077 in 1.96 mm [1]
    materialthe cable sheath FEP
    color of the cable jacket Blue
    wire version solid
    Conductor material copper Silberbeschichtetes
    head diameter (34 AWG) 0.006 in 0.15 mm [1]
    wire insulation Virgin PTFE
    shielding braided (at least 90% covered)
    screen material Silberbeschichteter wire
    Screen diameter (each fibre 40 AWG) 0.063 in 1.60 mm [1]
    Noise barrier material Graphite impregnated PTFE tape
    Bending radius (minimum) 1 in 25.4 mm
    mass 0.09 oz/ft 8.31 gm/m [1]
    notes
    [1] Typically
