List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 469-480 of 1981 item(s)

Sort by:

Showing 469-480 of 1981 item(s)

PCB-488B10

Universal AC power adapter, 100-240 VAC/ 50-60 Hz input, 33 VDC output, 6-pin mini DIN (for models 480B21), line cord

Output Voltage: 32 - 38 VDC
Output Current: 0.54 Amps

PCB-492B

ICP® sensor simulator, 100 Hz sine and square wave, 0 to 10 V pk-pk adj. output

PCB-501

Coiled 4-conductor cable

Cable Style: Multi Conductor - Shielded
Number of Conductors: 4
Cable Jacket Material: Polyurethane
Temperature Range: -58 to +250 °F (-50 to +121 °C)

PCB-5302D-01A

PCB L&T TORKDISC® System, 16-bit telemetry system, 2,000 in-lb/167 ft-lb (226 N-m) rated capacity, 200% static overload protection, 15,000 RPM Max., anodized aluminum

Measurement Range: 2000 in-lb (226 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 5800000 in-lb/radian (655312 N-m/radian)
Overload Limit: 3300 in-lb (373 Nm)
Housing Material: Anodized Aluminum
Weight: 3.5 lb (1.6 kg)

PCB-5302D-02A

PCB L&T TORKDISC® System, 16-bit telemetry system, 5,000 in-lb/417 ft-lb (565 N-m) rated capacity, 200% static overload protection, 15,000 RPM Max., steel alloy

Measurement Range: 5000 in-lb (565 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 14500000 in-lb/radian (1600 kN-m/radian)
Overload Limit: 10000 in-lb (1130 Nm)
Housing Material: Steel Alloy
Weight: 9.0 lb (4.1 kg)

PCB-5302D-02A/012AC080AT

TORKDISC®, ROTARY TORQUE SENSOR, 16-BIT

Measurement Range: 5000 in-lb (565 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 14500000 in-lb/radian (1600 kN-m/radian)
Overload Limit: 10000 in-lb (1130 Nm)
Housing Material: Steel Alloy
Weight: 9.0 lb (4.1 kg)

PCB-5308D-01A

PCB L&T TORKDISC® System, 16-bit telemetry system, 10k in-lb/833 ft-lb (1.1 kN-m) rated capacity, 200% static overload protection, 10,000 RPM Max., steel alloy

TORKDISC® System comes complete with receiver unit, 24 foot cable, and 12 VDC power supply.

Measurement Range: 10000 in-lb (1130 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 33500 kin-lb/radian (3785 kN-m/radian)
Overload Limit: 35000 in-lb (3955 Nm)
Housing Material: Steel Alloy
Weight: 10 lb

PCB-5308D-02A

PCB L&T TORKDISC® System, 16-bit telemetry system, 20k in-lb/1,667 ft-lb(2.26 kN-m) rated capacity, 200% static overload protection, 10,000 RPM Max., steel alloy

TORKDISC® System comes complete with receiver unit, 24 foot cable, and 12 VDC power supply.

Measurement Range: 20000 in-lb (2260 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 67000 kin-lb/radian (7570 kN-m/radian)
Overload Limit: 35000 in-lb (3955 Nm)
Housing Material: Steel Alloy
Weight: 10 lb (4.5 kg)

PCB-5308D-03A

PCB L&T TORKDISC® System, 16-bit telemetry system, 30k in-lb/2,500 ft-lb(3.4 kN-m) rated capacity, 150% static overload protection, 10,000 RPM Max., steel alloy

TORKDISC® System comes complete with receiver unit, 24 foot cable, and 12 VDC power supply.

Measurement Range: 30000 in-lb (3390 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 100000000 in-lb/radian (11298 N-m/radian)
Overload Limit: 35000 in-lb (3955 Nm)
Housing Material: Steel Alloy
Weight: 10 lb (4.5 kg)

PCB-5308D-140-02A

TORKDISC SYstem, 16 bit telemetry system, 20K in-LB/1,667 ft-lb (2.26 kN-M) rated capacity 200% static overload protection, 10,000 RPM Max., steel alloy

TORKDISC® System comes complete with receiver unit, 24 foot cable, and 12 VDC power supply.

Measurement Range: 20000 in-lb (2260 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 67000 kin-lb/radian (7570 kN-m/radian)
Overload Limit: 35000 in-lb (3955 Nm)
Housing Material: Steel Alloy
Weight: 10 lb (4.5 kg)

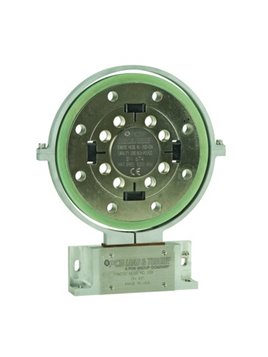

PCB-5309D-01A

PCB L&T TORKDISC® System, 16-bit telemetry system, 50k in-lb/4,167 ft-lb(5.65 kN-m) rated capacity, 100% static overload protection, 10,000 RPM Max., steel alloy

Measurement Range: 50000 in-lb (5649 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 115000 kin-lb/radian (12993 kN-m/radian)
Overload Limit: 85000 in-lb (9604 Nm)
Housing Material: Plated Steel
Weight: 30 lb (13.6 kg)

PCB-5309D-02A

PCB L&T TORKDISC® System, 16-bit telemetry system, 100k in-lb/8,333 ft-lb(11.3 kN-m) rated capacity, 100% static overload protection, 10,000 RPM Max., steel alloy

Measurement Range: 100000 in-lb (11298 Nm)
Temperature Range: +32 to +185 °F (0 to +85 °C)
Torsional Stiffness: 230000 kin-lb/radian (25987 kN-m/radian)
Overload Limit: 110000 in-lb (12430 Nm)
Housing Material: Plated Steel
Weight: 30 lb (13.6 kg)
