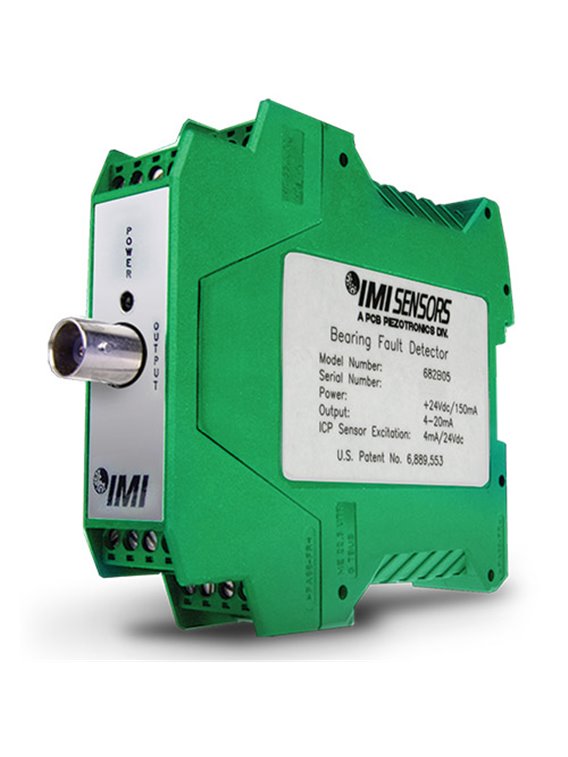

PCB-682C05
- Transmitter for mounting on a DIN rail,
- For the monitoring of camps,
- Connection of an industrial ICP® vibration sensor,
- Integrated sensor power supply
| specifications | |||
|---|---|---|---|
| basic data | English units | SI units | |
| input | 100 mV / g | 10.2 mV / (m / s) | |
| Frequency range (± 3 dB) (Vibration total) | 10 ... 1,000 Hz | ||
| Frequency range (± 3 dB) (error) | 1000/5000 ... 100,000 Hz | [1] | |
| Measurement range (error detection) | 50 g | ||
| Measurement range (vibration) | 5/10/20 g | 49.0 / 98.1 / 196.1 m / s | [3] |
| Measurement range (speed) | 0.5 / 1/2 in / s | 12.7 / 25.4 / 50.8 mm / s | [4] |
| exit | 4 ... 20 mA | [1] [2] | |
| Sampling time (± 15%) | 7 s | ||
| Output range (± 5%) | 16 mA | ||
| display | |||
| Power LED | green | ||
| Operating conditions | |||
| warm-up time | <2 minutes | ||
| The temperature range (operation) | 32 ... 158 ° F | 0 ... 70 ° C | |
| Temperature range (storage) | -40 ... 257 ° F | -40 ... 125 ° C | |
| Technical characteristics | |||
| power supply | 20 ... 28 V DC | ||
| current consumption | ?150 mA | ||
| Supply voltage for the sensor (± 1 V) | 24 V DC | ||
| Constant current supply (± 1 mA) | 4 mA | ||
| Vibrations raw signal output | Input signal ± 0.01% | ||
| load resistance | 500 ? | ||
| physical properties | |||
| Size - Width | 0.9 in | 22.5 mm | |
| Size - Height | 3.9 in | 99 mm | |
| Size - Depth | 4.5 in | 114.5 mm | |
| Dimensions | <5 oz | <142 grams | |
| housing material | polyamide | ||
| Connection wire cross section | 24 ... 14 AWG | 0.2 ... 2.5 mm² | |
| Terminal (input / output) | Removable terminals | ||
| Connection (vibration output) | BNC connector | ||
| DIN rail | 1.38 in | 35 mm | |
[5]
| Hints | |||
|---|---|---|---|
| [1] | Adjustable via internal jumpers | ||
| [2] | At frequencies below 5 Hz, the output signal varies. | ||
| [3] | acceleration mode | ||
| [4] | speed mode | ||
| [5] | Details: see PCB Declaration of Conformance PS152 | ||
