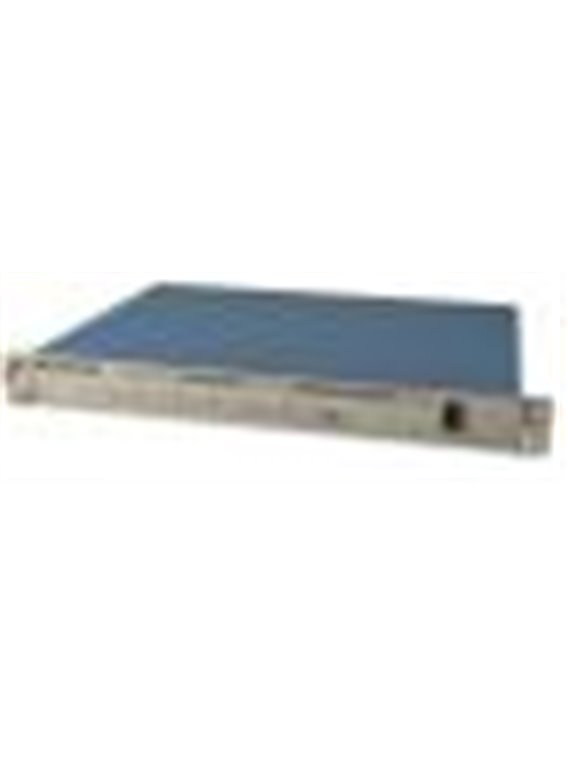

PCB-483C50
zoom_out_map

PCB-483C50

  • 8-channel supply unit,
  • Inputs: ICP® and voltage,
  • Continuous gain of 0.1 …?200 ?,
  • BNC-inputs and outputs,
  • Ethernet interface,
  • TEDS support
  •

    basic data
    number channels 8

    sensor type ICP, voltage

    increment of the amp ärkungseinstellung 0.1

    accuracy (amplification factor 0, 1 x … 0, 4 x) ≤5%

    precision (Verstä rkungsfaktor 0, 5 x … 200x) ≤1%

    lower limiting frequency (-5%) ≤0.05 Hz

    upper cut-off frequency (-3 dB) (Verstä rkungsfaktor 0, 1 x … 99, 9 x) > 100,000 Hz

    upper cut-off frequency (-3 dB) (gain 100x … 200x) > 80,000 Hz

    Phase shift (at 1,000 Hz) ±2 °

    Linearity error 0.01

    crosstalk < 72 dB

    TEDS reader function Yes

    Bias voltage/error (LED) display Open circuit/short circuit/overload
    digitalInterface
    digital interface Ethernet
    conditions of use
    temperature range (operation) 32 … 120 ° F 0 … 50 ° C
    Specifications
    power supply voltage

    voltage (47 … 63 Hz) 100 … 240V AC

    Power ≤0.7 A

    supply voltage (for sensor) > 24 V DC

    Constant power supply (for ICP® sensors, not ground isolated) 2 … 20 mA   [1]

    Overload threshold (± 0.5 V pk) ±10 V pk

    DC Offset < 50 mV

    output impedance < 50Ω

    Wide band noise (1 … 10,000 Hz) (amplification factor 1 x) 50.0 µV/rms   [2]

    spectral noise (1 Hz) 8.0 µV / √Hz   [2]

    Spectral noise (10 Hz) 1.5 µV / √Hz   [2]

    spectral noise (100 Hz) 1.0 µV / √Hz   [2]

    Spectral noise (1,000 Hz) 1.0 µV / √Hz   [2]

    spectral noise (10,000 Hz) 1.0 µV / √Hz   [2]

    Wide band noise (1 … 10,000,000 Hz) (amplification factor 10 x) 75.0 µV rms   [2]

    spectral noise (1 Hz) 20.0 µV / √Hz   [2]

    spectral noise (10 Hz) 1.5 µV / √Hz   [2]

    Spectral noise (100 Hz) 1.0 µV / √Hz   [2]

    spectral noise (1,000 Hz) 1.0 µV / √Hz   [2]

    Spectral noise (10,000 Hz) 1.0 µV / √Hz   [2]

    wide band noise (1 … 10,000 Hz) (gain 100 x) 350 µV rms   [2]

    Spectral noise (1 Hz) 100,0 µV / √Hz   [2]

    equipment
    017AXX cord -1

    EE75 Configuration software "MCSC" -1
    PCB-483C50

    Specific References

    Download

    483C50_drawing.PDF

    Technical drawing

    Download (543.93k)

    483C50_manual.PDF

    Operating instructions

    Download (832.47k)

    483C50_specs.PDF

    Technical data sheet

    Download (31.36k)
