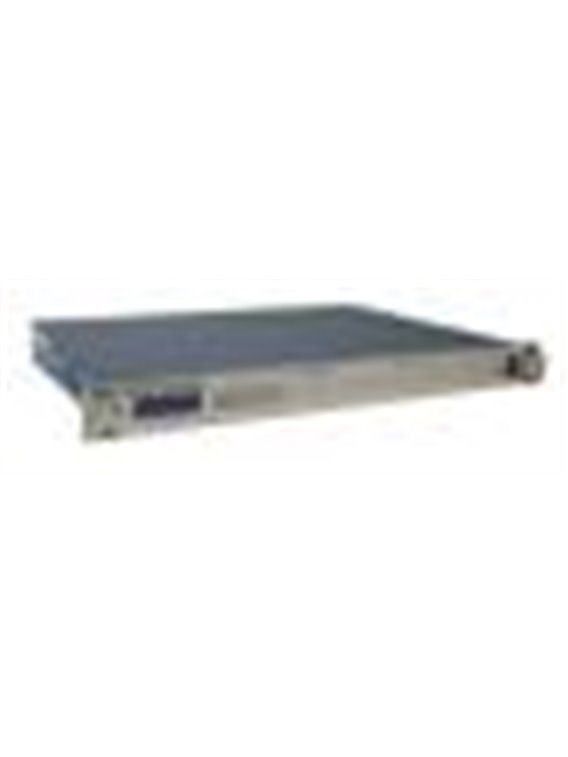

PCB-483C41

  • 8-Kanal-Versorgungseinheit,
  • Eingänge: ICP®, Spannung und Ladung,
  • Kontinuierliche Verstärkung 0,1 … 200x,
  • BNC-Ein- und Ausgänge,
  • Ethernet-Schnittstelle,
  • TEDS-Support,
  • Einstellbare Tiefpassfilter,
  • Display und Bedienfeld
  •

    basic data
    number channels 8

    sensor type ICP, voltage, charge

    Verstä rkungsfaktor (ICP®-/ voltage input) 0, 1 x to 200x

    gain (charge input) (mV/pC) 0.01 … 2.000

    Increment of the gain setting (ICP®-/ voltage input) 0.1

    Step width of the gain setting (charge input) (mV/pC) 0.01

    precision (ICP®-/ voltage input) (amplification factor 0, 01 x … 0, 04 x) ) ≤5%

    precision (ICP®-/ voltage input) (amplification factor 0, 05 x … 200x) ≤1%

    accuracy ( Charge input) (amplification factor 0.01 … 0.04 mV / pC) ±6%

    accuracy (charge input) (amplification factor of 0.05 … 2.000 mV / pC) ≤1%

    Entrance (load input) 100,000 pC pk

    Input range (ICP®-/ voltage input) 10 V pk   [6]

    input range (ICP®-/ voltage input, minimal) 5 V pk

    bottom Cutoff frequency (ICP®-/ voltage input) (-5%) ≤0.05 Hz

    lower limiting frequency (charge receipt) (-5%) 0.5 Hz   [3]

    top Cutoff frequency (amplification factor 0.01 … 99.9) (-3 dB) > 100,000 Hz

    upper frequency limit (gain 100 … 2,000) (-3 dB) > 80,000 Hz

    Filter type Butterworth low-pass of eighth order

    corner frequency of the electrical filter (-10%) 0.1/0.3/1/3/10/30000 Hz   [5]

    Edge steepness of the filter 160 dB/decade

    The passband of the filter frequency response accuracy 0.01

    Phase shift (at 1,000 Hz) ±2 °

    linearity error 0.01

    crosstalk ? 72 dB

    TEDS reader function Yes

    bias voltage/error (via LEDs) display Open circuit/short circuit/overload
    Manual
    user keypad

    digital display 2 lines, 16 characters
    digital interface
    Digital interface Ethernet
    conditions of use
    temperature range (operation) 32 … 120 ° F 0 … 50 ° C
    Technical properties
    Power supply voltage

    Voltage (47 … 63 Hz) 100 … 240 V AC

    power ≤0.7 A   [5]

    Supply voltage (for sensor) > 24 V DC

    constant power supply (for sensor) 2 … 20 mA   [1]

    10 V pk Overload threshold (±0. 5 V pk)

    DC Offset < 50 mV

    output range (minimum) 10 V

    capacity of the output (minimal) 10 mA

    output impedance < 50Ω

    wide band noise (amplification factor 1 x) (1 … 10,000 Hz) 50 µ V/rms   [2]

    spectral noise (1 Hz) 8 µV / √Hz   [2]

    spectral noise (10 Hz) 2 µV / √Hz   [2]

    Spectral noise (100 Hz) 0.7 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.7 µV / √Hz   [2]

    Spectral noise (10,000 Hz) 0.6 µV / √Hz   [2]

    wide band noise (amplification factor 10 x) (1 … 10,000,000 Hz) 75 µV rms   [2]

    Spectral noise (1 Hz) 18 µV / √Hz   [2]

    spectral noise (10 Hz) 1.5 µV / √Hz   [2]
      0.6 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.6 µV / √Hz   [2]

    spectral noise (10,000 Hz) 0.6 µV / √Hz   [2]

    Wide band noise (gain 10 mV / pC) (1 … 10,000 Hz) 52.0 µV/rms   [2]

    spectral noise (1 Hz) 14.0 µV / √Hz   [2]

    spectral noise (10 Hz) 2.0 µV / √Hz   [2]

    spectral noise (100 Hz) 0.7 µV / √Hz   [2]

    Spectral noise (1,000 Hz) 0.7 µV / √Hz   [2]

    spectral noise (10,000 Hz) 0.7 µV / √Hz   [2]

    Wide band noise (gai? 100 M? / pC) (1 … 10,000 Hz) 56.0 µV/rms   [2]

    spectral noise (1 Hz) 15.0 µV / √Hz   [2]

    spectral noise (10 Hz) 2.0 µV / √Hz   [2]

    spectral noise (100 Hz) 0.6 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.6 µV / √Hz   [2]

    spectral noise (10,000 Hz) 0.6 µV / √Hz   [2]

    integrated oscillator circuit (ICP/voltage) (± 2%) 0.1 V pk

    integrated oscillator circuit (load) (±?2 %) 100 pC pk

    oscillator frequency (± 2%) 100/1,000 Hz
    physical properties
    electrical connection (sensor input ) BNC socket

    electrical connection (output) BNC Jack

    electrical connection (Ethernet) RJ45

    Size - height (nominal) 1.75 in 44.5 mm

    size - width (nominal) 19 in 482.6 mm

    Size - depth (nominal) 13.7 in 348 mm

    dimensions 8 lb 3.6 kg
    notes
    [1] for each channel individually configurable,.Setting at the factory: 4 mA (±1. 0 mA).

    [2] typically

    [3] the lower cut-off frequency tolerance: ±25%

    [4 ] Tolerance: ±5%

    [5] to use fuse: T1, 6A

    [6] depending on the bias voltage of the connected Sensor

    [7] details: see PCBs Declaration of conformance PS024
    Accessories
    017AXX cord -1

    EE75 Configuration software "MCSC" -1
    PCB-483C41

    Specific References

    Download

    483C41_drawing.PDF

    Technical drawing

    Download (190.42k)

    483C41_manual.PDF

    Operating instructions

    Download (741.9k)

    483C41_specs.PDF

    Technical data sheet

    Download (37.26k)
