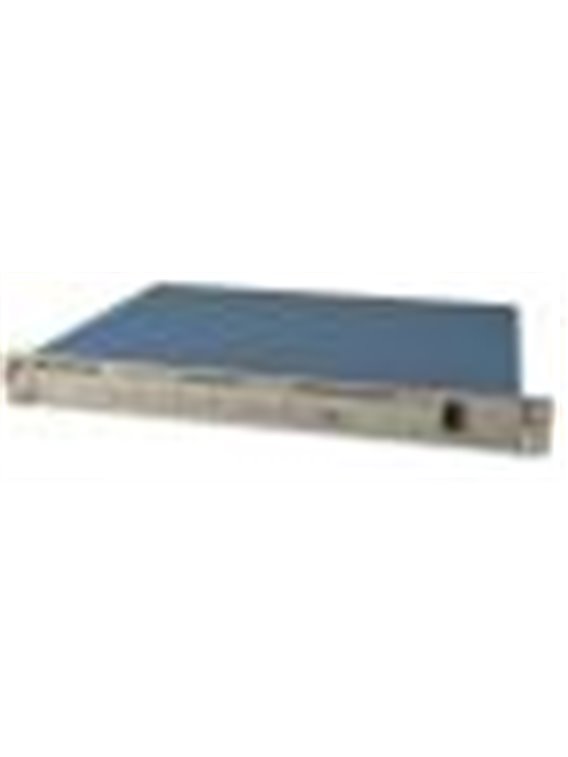

PCB-483C30
zoom_out_map

PCB-483C30

  • 8-channel supply unit,
  • Inputs: ICP®, voltage and load,
  • Continuous gain of 0.1 …?200 ?,
  • BNC-inputs and outputs,
  • Ethernet interface,
  • TEDS support
  • "

    basic data
    number channels 8

    sensor type ICP, voltage, charge

    increment of Gain 0.1

    accuracy (amplification factor 0, 1 x 0, 4 x) ≤5%

    precision (Verstä rkungsfaktor 0, 5 x to 200x) ≤1%

    (charge input at 100 Hz) sensitivity (±1%) 0.1 … 10.0 mV / pC

    bottom Cutoff frequency (ICP® input) (-5%) ≤0.05 Hz

    lower limiting frequency (charge receipt) (-5%) 0.5 Hz   [3] [4]

    top Cutoff frequency (amplification factor 0, 1 x to 9 x 99) (-3 dB) > 100,000 Hz

    upper limit frequency (gain 100 x to 200x) (-3 dB) > 80,000 Hz

    Filter type low-pass of fourth order

    corner frequency of the electrical filter (-3 dB) 10,000 Hz   [5]

    Edge steepness of the filters 24 dB/octave

    The passband of the filter frequency response accuracy 0.01

    phase shift (at 1,000 Hz) ±2 °

    linearity error 0.01

    crosstalk < 72 dB

    TEDS reader function Yes

    Bias voltage/error display Open circuit/short circuit/overload
    digital interface
    digital interface Ethernet
    Conditions of use
    temperature range (operation) 32 … 120 ° F 0 … 50 ° C
    technical
    Power supply power supply

    voltage (47 … 63 Hz) 100 … 240 V AC

    Power ? 0.85 A

    supply voltage (for sensor) > 24 V DC

    Constant power supply (for ICP® sensors, not ground isolated) 2 … 20 mA   [1]

    constant power supply (for ICP® sensors, ground isolated) ( ±0. 6 mA) 4 mA

    pk ±10 V Overload threshold (±0. 5 V pk)

    DC Offset < 50 mV

    Output range 10 V

    carrying capacity of the Augangs 50 mA

    output impedance < 50Ω

    discharging charging time constant (charge input) (±25%) 1 s

    wide band noise (amplification factor 1 x) (1 … 10,000 Hz) 50 µV/rms   [2]

    spectral noise (1 Hz) 8 µV / √Hz   [2]

    spectral noise (10 Hz) 2 µV / √Hz   [2]

    spectral noise (100 Hz) 0.7 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.7 µV / √Hz   [2]

    Spectral noise (10,000 Hz) 0.6 µV / √Hz   [2]

    wide band noise (amplification factor 10 x) (1 … 10,000,000 Hz) 75 µV rms   [2]

    spectral noise (1 Hz) 18 µV / √Hz   [2]

    spectral noise (10 Hz) 1.5 µV / √Hz   [2]

    Spectral noise (100 Hz) 1.0 µV / √Hz   [2]

    spectral noise (1,000 Hz) 1.0 µV / √Hz   [2]

    Spectral noise (10,000 Hz) 1.0 µV / √Hz   [2]

    wide band noise (gain 100 x) (1 … 10,000 Hz) 350 µV rms   [] 2]

    spectral noise (1 Hz) 100 µV / √Hz   [2]

    spectral noise (10 Hz) 10 µV / √Hz   [2]

    Spectral noise (100 Hz) 6 µV / √Hz   [2]

    spectral noise (1,000 Hz) 5 µV / √Hz   [2]

    SpectralNoise (10,000 Hz) 5 µV / √Hz   [2]

    wide band noise (0.1 mV / pC, amplification factor 1 x) (1 … 10,000 Hz) 52.0 µV rms   [2]

    Spectral noise (1 Hz) 10.0 µV / √Hz   [2]

    spectral noise (10 Hz) 1.5 µV / √Hz   [2]

    Spectral noise (100 Hz) 0.6 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.6 µV / √Hz   [2]

    spectral Noise (10,000 Hz) 0.6 µV / √Hz   [2]

    wide band noise (1.0 mV / pC, amplification factor 1 x) (1 … 10,000 Hz) 52.0 µV rms   [2]

    Spectral noise (1 Hz) 14.0 µV / √Hz   [2]

    spectral noise (10 Hz) 2.0 µV / √Hz   [2]

    Spectral noise (100 Hz) 0.7 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.7 µV / √Hz   [2]

    spectral Noise (10,000 Hz) 0.7 µV / √Hz   [2]

    wide band noise (10.0 mV / pC, amplification factor 1 x) (1 … 10,000 Hz) 56.0 µV/rms   [2]

    Spectral noise (1 Hz) 15.0 µV / √Hz   [2]

    spectral noise (10 Hz) 2.0 µV / √Hz   [2]

    Spectral noise (100 Hz) 0.6 µV / √Hz   [2]

    spectral noise (1,000 Hz) 0.6 µV / √Hz   [2]

    spectral Noise (10,000 Hz) 0.6 µV / √Hz   [2]

    electrical insulation (mass of different channels) isolated / non isolated

    Electrical insulation (mass input and output side) isolated / non-isolated

    Integrated oscillator circuit (ICP®) (±2%) 0.1 V pk 100/1,000 Hz

    integrated oscillator circuit (load) (±2%) 100 pC pk 100/1,000 Hz

    Input for external calibration signal: transcription factor (ICP®) (±1.%) 1 V / V

    input for external calibration signal: transcription factor (load) (±1%) 1,000 pC/V
    physical properties
    Electrical connection (sensor input) BNC Jack

    electrical connection (output) BNC Jack

    electric Connection (external calibration signal) 10-32-coaxial socket

    electrical connection (Ethernet) RJ45

    size - height (nominal) 1.75 in 44.5 mm

    Size - width (nominal) 19 in 482.6 mm

    size - depth (nominal) 13.7 in 348 mm

    Weight 8 lb 3.6 kg
    notes
    [1] configurable, default ex factory: 4 mA (±1. 0 mA). The channels can individually be configured.

    [2] typically

    [3] the lower cut-off frequency tolerance: ±25%

    [4] with input impedance > 10 MOhm

    [5] tolerance: ±5%

    [6] details: see PCB Declaration of conformance PS024
    equipment
    017AXX cord -1

    EE75 Configuration software "MCSC" -1
