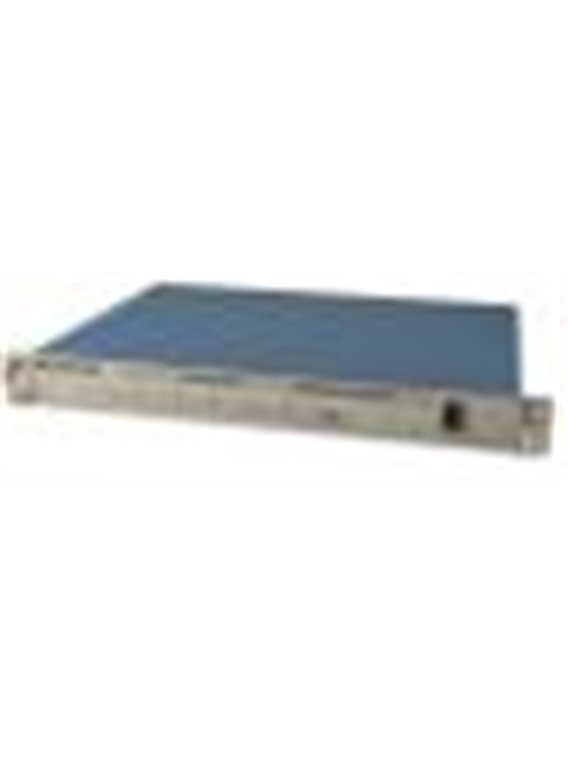

PCB-483C05
zoom_out_map

PCB-483C05

  • 8-channel supply unit,
  • Inputs: ICP®,
  • Gain 1 x,
  • BNC-inputs and outputs
  • basic data
    number channels 8
    sensor type ICP
    output range (max) ±10 V
    lower limiting frequency (-5%) < 0,1 Hz
    upper cut-off frequency (-5%) > 1,000,000 Hz
    Phase shift (at 1,000 Hz) ±1 °
    crosstalk (maximum) -72 dB
    display Bias voltage/error (via LEDs) Open circuit/short circuit/overload
    conditions of use
    temperature range (operation) 32 … 122 ° F 0 … 50 ° C
    specifications
    power supply voltage
    voltage (47 … 63 Hz) 100 … 240V AC
    Power ≤ 0.7 A
    supply voltage (for sensor) (± 1 V DC) 26 V DC
    Constant power supply (for sensor) 0 … 20 mA [1]
    ±10 V pk Overload threshold (±1. 0 V pk)
    DC Offset < 20 mV
    output impedance 50 Ω
    wide band noise (1 … 10,000 Hz) 3.5 µV rms [2]
    spectral noise (1 Hz) 1.30 µV / √ Hz [2]
    spectral noise (10 Hz) 0.10 µV / √ Hz [2]
    spectral noise (100 Hz) 0.08 µV / √ Hz [2]
    spectral noise (1,000 Hz) 0.07 µV / √ Hz [2]
    Spectral noise (10,000 Hz) 0.07 µV / √ Hz [2]
    physical properties
    electrical connection (ICP® sensor input) BNC connector
    Electrical connection BNC Jack
    electrical connection (mains voltage) IEC 320
    Size - height (nominal) 1.75 in 44,5. mm
    size - width (nominal) 19 in 482.6 mm
    Size - depth (nominal) 13.7 in 348 mm
    measures 6.25 lb 2.83 kg
    notes
    [1] Configurable via two potentiometers for four channels, default setting at the factory: 4 mA (±0. 5 mA)
    [2] typically
    [3] Details: see PCBs Declaration of conformance PS024
    equipment
    017AXX power cord -1
