List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 661-672 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 661-672 of 1981 item(s)
PCB-076A05
0

PCB-076A05

Microdot connector, screw-on type (for use w/ pin insertion tool Model 076B25)

      PCB-076B04
      0

      PCB-076B04

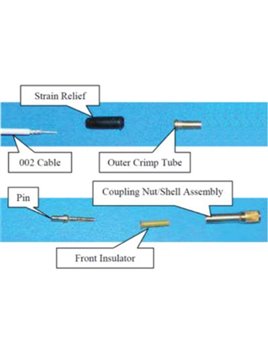

      5-44 connector kit (includes (1) crimping tool, (1) crimp die, (20) strain reliefs and (20) coaxial connectors Model AG)

      Items included in kit:
      Connector - Model AG (20)
      Strain Relief (20)
      Cable Crimp Tool (1)
      Crimp Die (1)
          PCB-076B25
          0

          PCB-076B25

          Pin insertion tool (for use with Model 076A05 and EB 10-32 plugs), upgraded nut

              PCB-077025-00012
              0

              PCB-077025-00012

              Stationary Torque Transducer, 100 in-lb (11.3 Nm), 1/4-inch Square Drive, 4-pin PT Receptacle

              For more information on RS Technologies Fastener Assembly products and applications, please visit:
              https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-assembly

              To view the RS Technologies Assembly Product Catalog, please visit:
              https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Assemby_Lowres.pdf
              • Measurement Range: 100 in-lb (11.4 Nm)
              • Sensitivity: (output at rated capacity)2 mV/V
              • Size - Diameter: 4.00 in (101.6 mm)
              • Size - Height: 1.75 in (44.5 mm)
                PCB-077050-00201
                0

                PCB-077050-00201

                Stationary Torque Transducer, 200 ft-lb (271 Nm), 1/2-inch Square Drive, 4-pin PT Receptacle

                For more information on RS Technologies Fastener Assembly products and applications, please visit:
                https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-assembly

                To view the RS Technologies Assembly Product Catalog, please visit:
                https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Assemby_Lowres.pdf
                • Measurement Range: 200 lbf-ft (271.2 Nm)
                • Sensitivity: (output at rated capacity)2 mV/V
                • Size - Diameter: 4.0 in (101.6 mm)
                • Size - Height: 1.75 in (44.5 mm)
                  0

                  PCB-078F10

                  4-conductor, twisted shielded, Polyurethane cable, 10-ft, 4-socket plug to (3) 10-32 plugs (labeled X, Y, Z)

                      PCB-079A02
                      0

                      PCB-079A02

                      1/4" microphone to 1/2" preamplifier adaptor

                      Connects a 1/4" diameter 377-series microphone to a 426-series 1/2" diameter preamplifier. Length is 13/16".
